TE Connectivity AMP Connectors 1-2040832-6 — FFC / FPC Cable Assemblies

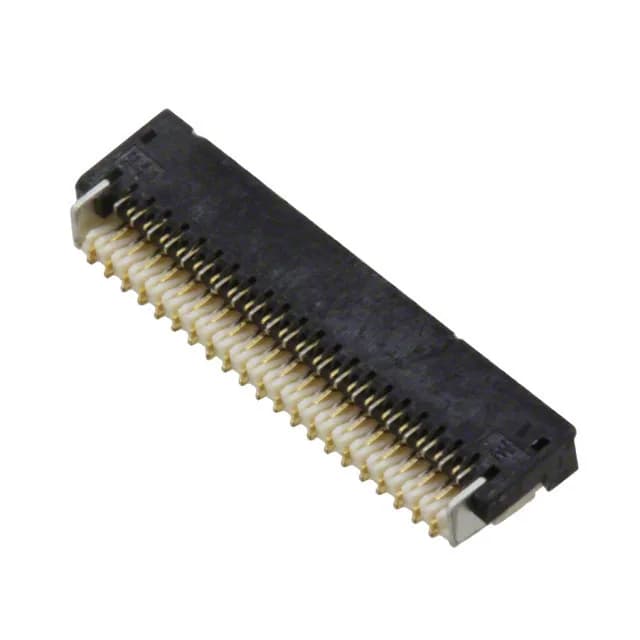

1-2040832-6 TE Connectivity FPC Connector 41 Pos 0.25mm ZIF

MPN1-2040832-6
Active

TE Connectivity AMP FPC connector, 1-2040832-6, 41 positions, 0.25mm pitch, ZIF bottom contact, right-angle SMT, gold-plated contacts, solder retention, 0.2A per contact, 50V rating, -25°C to 85°C operating range.

$0.4644Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-2040832-6 key specifications
ParameterValue
MountingSurface Mount, Right Angle
Cable end typeTapered
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.2A
Operating temperature-25°C ~ 85°C
Housing colorNatural
Actuator colorBlack
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP), Glass Filled
Actuator materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

1-2040832-6 additional specifications
ParameterValue
Height above board0.051\" (1.30mm)
Material flammability ratingUL94 V-0
Pitch0.010\" (0.25mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.20mm
Positions41

Product details

What this 0.25mm-pitch FPC connector does

The 1-2040832-6 is a 41-position FPC connector from TE Connectivity AMP, built for high-density signal routing on a 0.25mm pitch – one of the tightest pitches in the FPC connector class.

Signal-level current and voltage limits

Rated 0.2A per contact at 50V, this connector is strictly for signal-level interconnects – not for power delivery. The 0.2A limit is typical for ultra-fine-pitch FPC connectors where the contact beam cross-section and pitch restrict current.

Assembly and retention features

The housing is natural LCP glass-filled (UL94 V-0), and the actuator is black LCP glass-filled – the natural housing colour helps visual inspection of solder joints. Gold-plated copper alloy contacts ensure reliable signal transfer over repeated mating cycles, typical for field-serviceable or test-point connections.

Frequently asked questions

What is the pitch of 1-2040832-6?

The pitch is 0.010" (0.25mm). This ultra-fine pitch requires precise PCB layout and is typical for high-density FPC interconnects in compact electronics.

Does 1-2040832-6 have solder retention?

Yes, it features solder retention tabs that hold the connector during reflow and add mechanical strength against cable strain.
