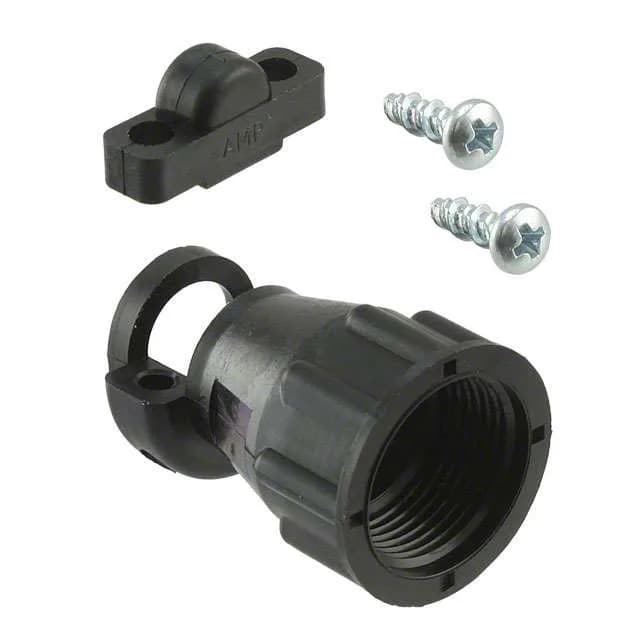

The TE Connectivity 1-206062-6 is a backshell with cable clamp from the CPC series, designed for shell size 11 CPC connectors. It provides strain relief and cable management at the rear of a circular connector assembly, terminating the cable jacket with a 180° straight exit. The 5/8-24 UNEF thread mates directly to the back of a CPC size 11 plug or receptacle body, securing the cable bundle against pull-out and vibration in industrial equipment, automation panels, and machine tool wiring. The kit includes 4 pieces: 2 cable clamp halves and 2 screws. The cable opening accepts bundles up to 0.329" (8.36 mm) in diameter, which typically covers a multi-conductor cable with 3 to 5 signal or power circuits in a CPC size 11 insert.
Thread and Shell Size — What Mates
The thread is 5/8-24 UNEF, a standard UNEF (Unified Extra Fine) thread used on CPC size 11 connector backs. This threads onto the matching rear thread of any CPC size 11 plug or receptacle body — not the coupling ring, but the stationary thread at the cable-entry end of the connector. The shell size 11 is the same size designation used across the TE CPC family for the insert and housing, so this backshell fits all standard CPC size 11 connectors regardless of circuit count or contact arrangement.
