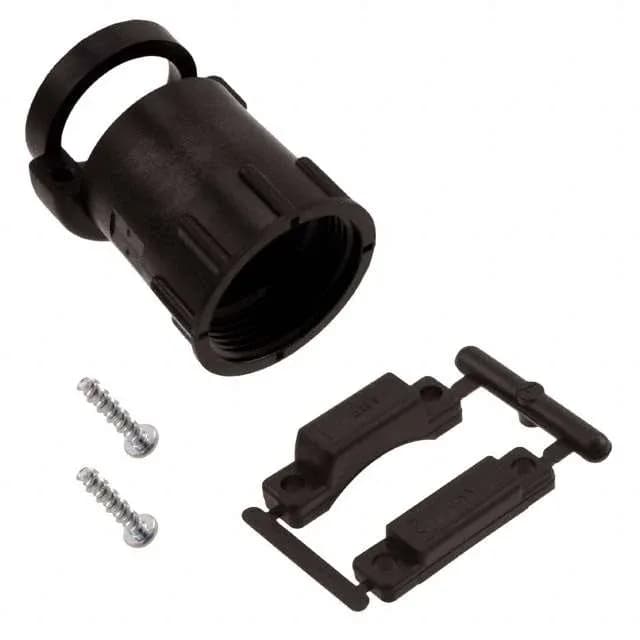

The TE Connectivity 1-206322-0 is a backshell with cable clamp for the CPC (Circular Plastic Connector) series, shell size 17. It provides strain relief and cable management for the back of a mated CPC circular connector pair, routing the cable bundle at a straight 180° exit. This is the size 17 version, which mates with the corresponding CPC connector insert of the same shell size. The 15/16-20 UNEF thread on the backshell couples to the connector's threaded coupling ring — a standard thread for this series.
Cable Opening and Included Hardware
The cable opening measures 0.703" (17.86 mm) in diameter, which sets the maximum cable bundle diameter that passes through the clamp. For a harness with a round bundle up to that diameter, this backshell provides a clean fit with the clamp screws cinching down for strain relief. The kit includes five pieces: three cable clamp segments and two mounting screws. The clamp segments wrap around the cable bundle and are secured by the screws, giving you all the hardware needed for a single backshell installation — no separate fastener sourcing required.
