Panel-Mount Receptacle with Threaded Fastening

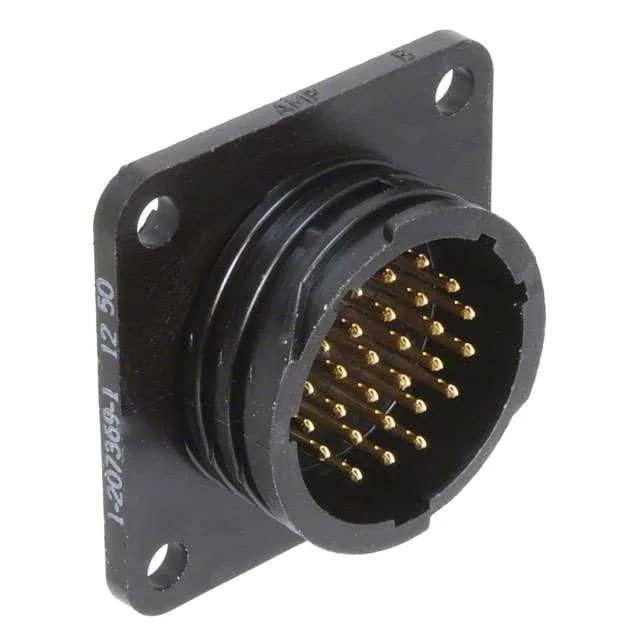

The TE Connectivity 1-207369-1 is a 28-position CPC Series 2 receptacle with male pins, designed for panel-mount, through-hole solder termination. The threaded fastening type and integral flange secure the connector against vibration and accidental disconnection in industrial environments.
Rated for 7.5A with 30µin Gold Contacts
Each contact is rated 7.5A at 250V, with 30.0µin (0.76µm) gold plating on the mating surface. The 28-position count matches a 28-circuit harness; the shell size 17-28 insert accommodates that density within a standard CPC Series 2 envelope.
Mating and Thread Size
This receptacle mates with a CPC Series 2 plug that carries the matching shell size 17-28 insert and female socket contacts. The threaded coupling ring on the plug half engages the threads on this receptacle flange.
