TE Connectivity AMP Connectors 1-215079-2 — Female Socket Headers

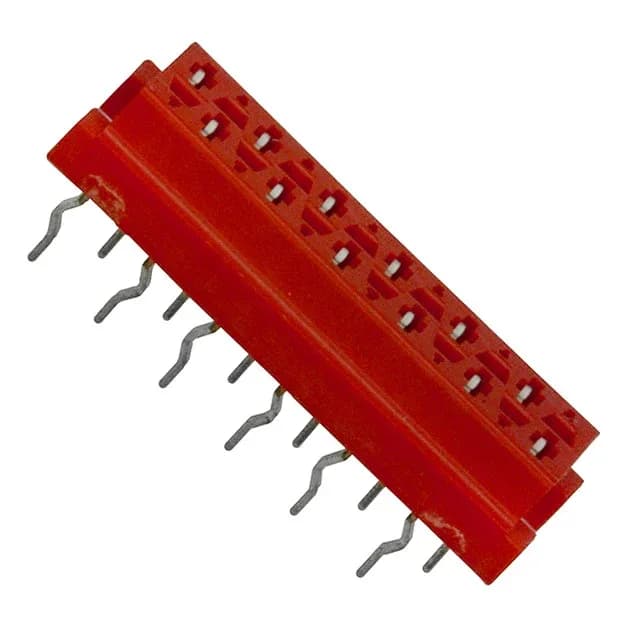

1-215079-2 TE Connectivity Micro-MaTch 12-Pin Female Socket

MPN1-215079-2
Active

TE Connectivity AMP Connectors Micro-MaTch receptacle, 12 positions, 2 rows, 0.100" (2.54mm) pitch, tin-on-tin contacts, through-hole kinked-pin termination, UL94 V-0, -40°C to 105°C, 100 VDC rating.

$0.9900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-215079-2 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating100VDC
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.157\" (4.00mm)
Insulation materialPolybutylene Terephthalate (PBT), Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

1-215079-2 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
TerminationKinked Pin, Solder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingTin

Product details

What this 12-position receptacle does in the assembly

The forked contact design gives a reliable wipe on the mating pin, and the tin-on-tin finish keeps the cost down for moderate-cycle applications. Rated at 100 VDC and spanning -40°C to 105°C, it's suited for signal-level interconnects in automotive and general-purpose gear — think ECU boards, sensor modules, or control panels where the environment isn't sealed but the temperature stays inside that window.

The 12 positions are all loaded, meaning every pin is present; no unpopulated spots to watch for on the BOM. Insulation height is 0.157" (4.00mm) above the board surface, and the contact post length is 0.122" (3.10mm) — enough for a standard 1.6mm PCB with a bit of tail for solder fillet visibility.

The closest functional second-source is 1-2823056-2, also a 12-position, 0.100" pitch Micro-MaTch receptacle, but in a black housing with surface-mount termination instead of through-hole. If your board is SMT-only and you need the same position count and pitch, that's the swap — but the through-hole kinked pin of 1-215079-2 gives better mechanical retention on a single-sided board.

Frequently asked questions

Where can I buy 1-215079-2 and what's the lead time?

It's an active TE Connectivity AMP Connectors part with no end-of-life notice. Current pricing and lead time are confirmed at quote time — send an RFQ with your target quantity and ship-to location.
