Board-to-Board or Cable Receptacle for 0.100" Grids

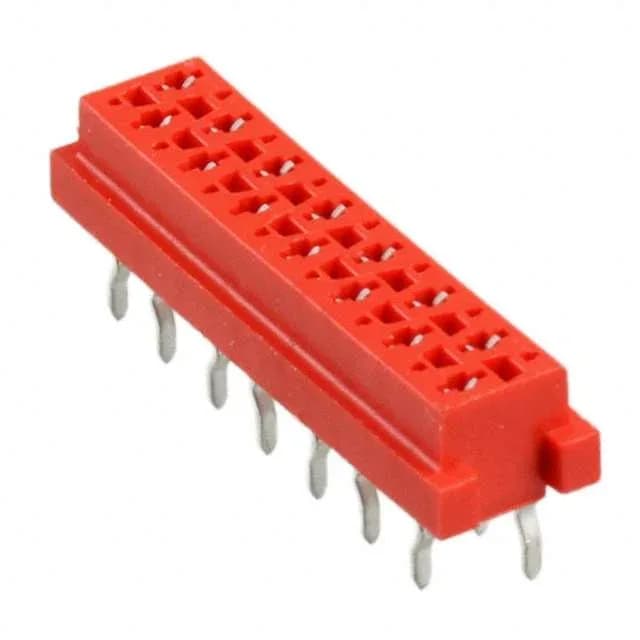

The 1-215079-4: This 14-position receptacle from the Micro-MaTch series mates on a 0.100" (2.54mm) pitch with matching headers, keeping your PCB layout on a standard grid. The dual-row arrangement with 0.100" row spacing means it fits the same footprint as legacy 0.100" box headers, so a board already routed for a 14-pin header can take this receptacle without a layout change. Rated for 100 VDC and tin-plated contacts, it handles signal-level currents in automotive body modules and general-purpose control boards.
Through-Hole Retention and Temperature Range
Kinked pins hold the connector in the plated through-hole during wave solder — no secondary board lock needed for most production lines. Housing material is UL94 V-0 rated PBT/glass-filled, so it can go inside equipment that requires a flammability rating.
