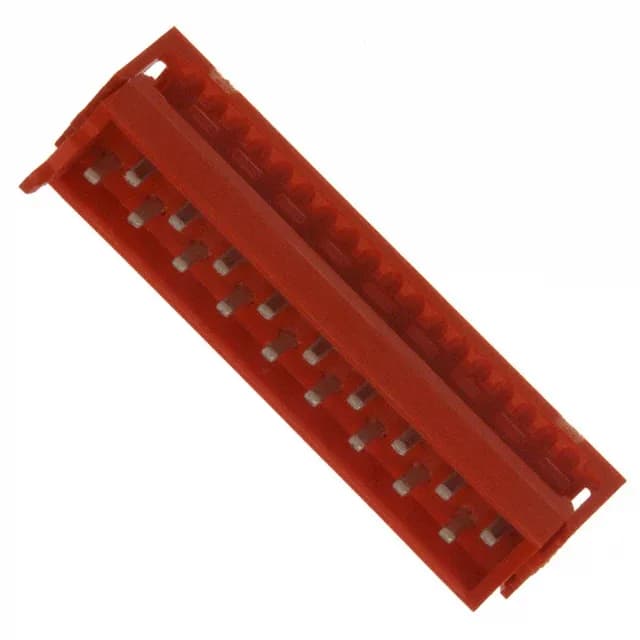

TE Connectivity Micro-MaTch IDC plug, 1-215083-8, 18 positions, 2 rows, 0.100" (2.54mm) pitch, 0.059" (1.50mm) row spacing, tin male pins, 28 AWG ribbon cable, free-hanging, red, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Wire type | Ribbon Cable |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Wire gauge | 28 AWG |
| Cable termination | IDC |
| Color | Red |
| Pitch | 0.100\" (2.54mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Feed Through |
| Row spacing | 0.059\" (1.50mm) |
| Contact finish | Tin |
| Rows | 2 |
| Positions | 18 |
The 18 positions in two rows (0.059" / 1.50mm row spacing) accept a standard 18-conductor 28 AWG ribbon cable. Termination is IDC — the cable is pressed onto the insulation-displacement contacts, no stripping or crimping needed.
The pitch is 0.100" (2.54mm), which is the standard spacing for ribbon cable and matches the footprint of a 0.100" header.
Yes, it is ROHS3 compliant.
It is designed for 28 AWG ribbon cable.
