TE Connectivity AMP Connectors 1-215297-1 — Female Socket Headers

1-215297-1 TE Connectivity AMPMODU HV-100 11-Pos Receptacle

MPN1-215297-1
Active

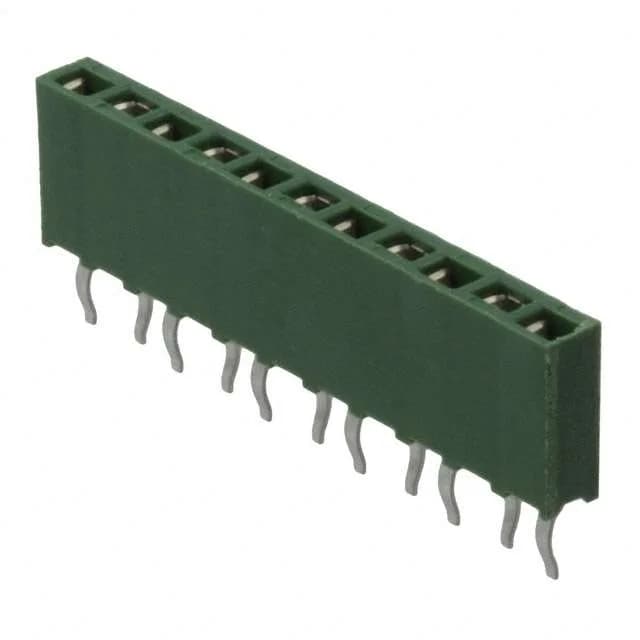

TE Connectivity AMP Connectors AMPMODU HV-100, 1-215297-1, 11-position single-row receptacle, 0.100" (2.54mm) pitch, through-hole, kinked pin solder termination, gold mating finish, green polyester housing, UL94 V-0.

$1.7700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-215297-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU HV-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-215297-1 key specifications
ParameterValue
SeriesAMPMODU HV-100
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorGreen
Insulation height0.276\" (7.00mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk

All specifications

1-215297-1 additional specifications
ParameterValue
TerminationKinked Pin, Solder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions11
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingGold
Contact finish thickness - post118.1µin (3.00µm)
Contact finish thickness - mating31.5µin (0.80µm)

Product details

Board-fit and footprint match

The 1-215297-1: This is a through-hole receptacle with 11 positions in a single row on 0.100" (2.54mm) pitch — the standard footprint for AMPMODU HV-100 headers. Mates with any 0.100" pitch square-pin header of the same position count. The gold mating finish at 31.5µin (0.80µm) supports repeated connect-disconnect cycles without wear-through.

RoHS3 compliant.

Comparing to similar receptacles

The 1376775-2 is a 5-position black receptacle with 8.00µin gold mating finish — thinner plating, fewer circuits. The 1-2823056-2 is a 12-position, 2-row, tin-mating surface-mount part — different footprint and termination. Neither is a direct drop-in for the 11-position, single-row, through-hole layout of 1-215297-1.

Frequently asked questions

Is 1-215297-1 compatible with standard 0.1" pin headers?

Yes. The 0.100" (2.54mm) pitch and female socket contacts mate with any standard square-pin header of the same pitch and position count.
