TE Connectivity AMP Connectors AMPMODU HV-100, 1-215297-2, Board to Board receptacle, 12 positions, 0.100" (2.54mm) pitch, Through Hole, Kinked Pin, Solder termination, Gold mating finish
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black or Green |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |

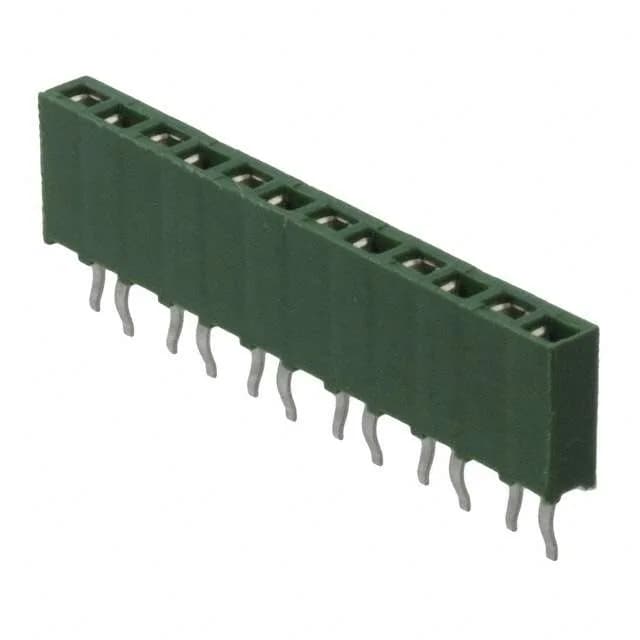

The 1-215297-2 is a 12-position single-row female socket header from the AMPMODU HV-100 series, designed for board-to-board stacking.
The mating contact area is plated with 31.5 µin (0.80 µm) of gold over phosphor bronze base metal. The post finish is tin (118.1 µin / 3.00 µm), which solders cleanly into plated through-holes.
The pitch is 0.100" (2.54mm) and it has 12 positions in a single row, all loaded.
It uses through-hole termination with kinked, solder pins. The contact post length is 0.122" (3.10mm).
