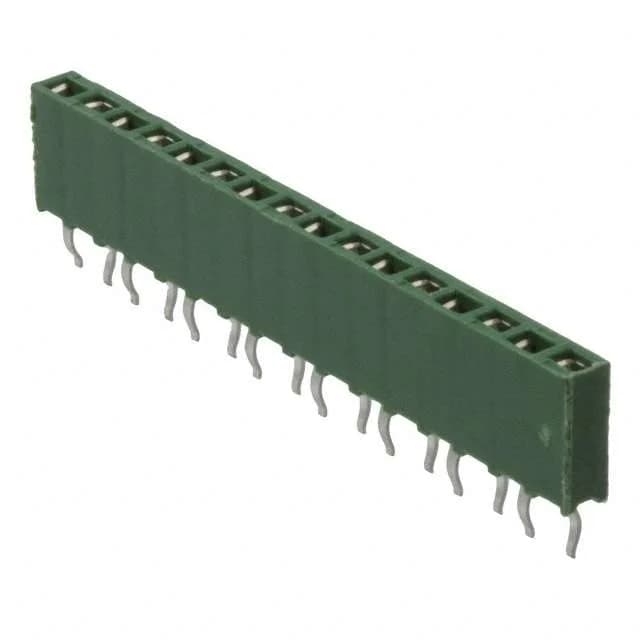

TE Connectivity AMP Connectors AMPMODU HV-100, Board to Board, 16 Positions, 0.100" (2.54mm) Pitch, Through Hole, Receptacle, Female Socket, Gold Mating Contact, Tin Post, UL94 V-0, Active.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black or Green |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
Mating pitch is 0.100" (2.54mm) — the industry-standard spacing for 0.025" square pin headers. This receptacle accepts standard male breakaway headers without modification. Mounting is through hole only — not SMD. The post length is 0.122" (3.10mm), suitable for 1.6mm thick PCBs with standard wave-solder profiles.
ROHS3 compliant, bulk packaged.
Submit an RFQ against your BOM quantity.
