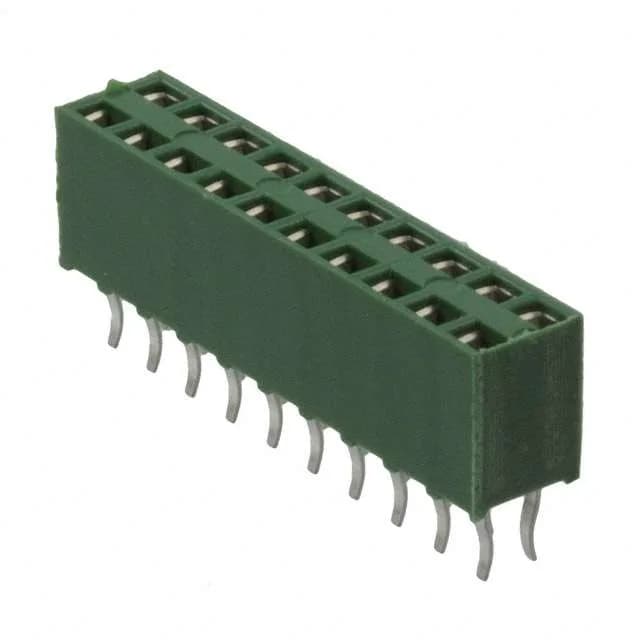

20-position dual-row receptacle for standard 0.100-inch board stacks
The 1-215307-0: The through-hole termination uses kinked pins for retention during soldering, and the mating interface is gold-plated at 31.5 µin (0.80 µm) to handle repeated mating cycles without corrosion.
Gold mating finish and kinked-pin solder retention
The kinked solder tails (0.122" post length) provide mechanical retention through the wave-solder process, reducing the risk of pin float compared to straight-tail versions in the same series.
