TE Connectivity AMP Connectors 1-215307-3 — Female Socket Headers

1-215307-3 TE Connectivity AMPMODU HV-100 26-Pin Receptacle

MPN1-215307-3
Active

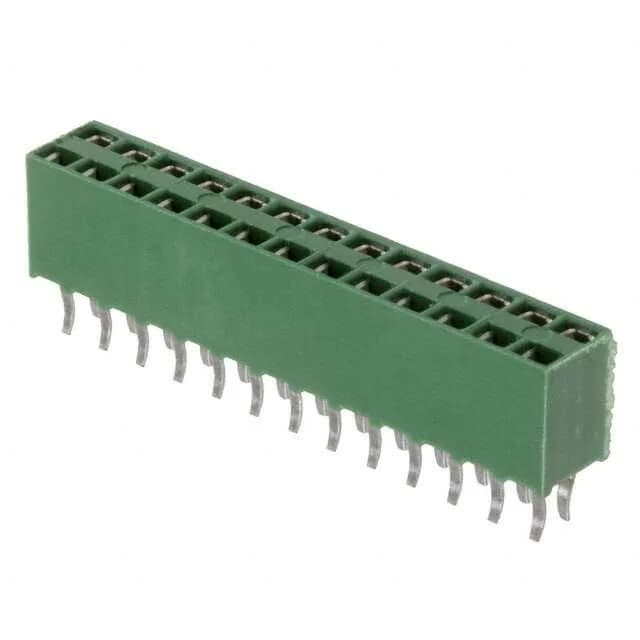

TE Connectivity AMP Connectors AMPMODU HV-100, 26-position dual-row receptacle, 0.100" (2.54 mm) pitch, through-hole, kinked pin solder termination, gold mating finish, UL94 V-0 green polyester housing.

$3.0400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-215307-3 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPMODU HV-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-215307-3 key specifications
ParameterValue
SeriesAMPMODU HV-100
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorGreen
Insulation height0.276\" (7.00mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTray

All specifications

1-215307-3 additional specifications
ParameterValue
TerminationKinked Pin, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingGold
Contact finish thickness - post98.4µin (2.50µm)
Contact finish thickness - mating31.5µin (0.80µm)

Product details

Board-to-Board Fit: 26 Circuits at 0.100" Pitch

The 1-215307-3: This is a 26-position, dual-row receptacle from the AMPMODU HV-100 series, designed for board-to-board stacking.

Housing and Flame Rating

Peer Comparison: 1-2823056-2 and 1376775-2

Compared to the 1-2823056-2, this 1-215307-3 offers 26 positions versus 12, and a gold mating finish (31.5 µinch) versus tin — a meaningful upgrade for corrosion resistance and cycle life. The 1-2823056-2 uses a forked contact shape and surface-mount termination, so the footprint and assembly process differ. Against the 1376775-2 (5 positions, 8 µinch gold), the 1-215307-3 provides a higher circuit count and a thicker gold layer (31.5 µinch vs 8 µinch), which translates to more mating cycles before wear-through. Both are active receptacles in the same AMPMODU family, but the 1376775-2 carries a 3 A current rating and 250 VAC voltage rating not listed on this part.

Frequently asked questions

Is the 1-215307-3 RoHS compliant?

Yes, the 1-215307-3 is RoHS compliant per the manufacturer's listing.

What is the pitch of the 1-215307-3?

The mating pitch is 0.100" (2.54 mm), with a matching row spacing of 0.100" (2.54 mm).

Is there a direct replacement for the 1-215307-3?

No direct replacement is listed by the manufacturer. The 1-2823056-2 is a functional alternative with 12 positions and tin plating, but it uses surface-mount termination and a different contact style — confirm footprint compatibility before substituting.
