TE Connectivity AMPMODU HV-100, Board to Board, Female Socket Header, 20 positions, 0.100" (2.54mm) pitch, dual row, Through Hole, Kinked Pin, Solder, Gold mating finish, Black or Green insulation, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black or Green |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |

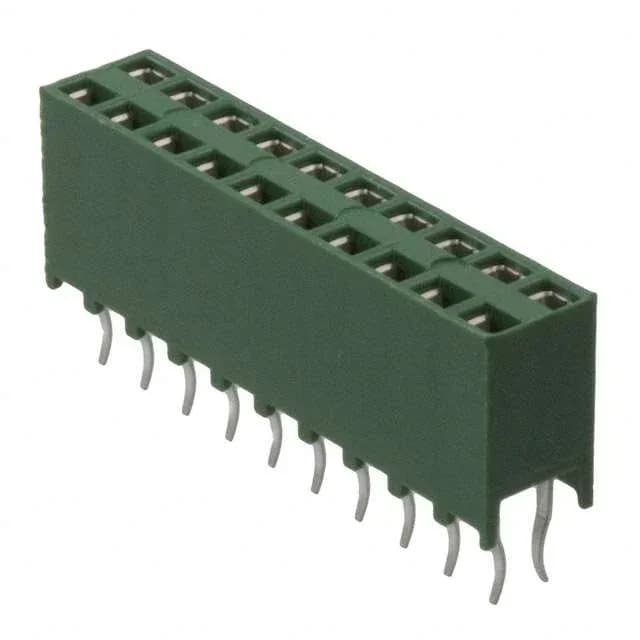

The 1-215309-0 is a 20-position, dual-row female socket header from the AMPMODU HV-100 series, designed for board-to-board interconnects on a 0.100-inch pitch.
The post finish is tin at 98.4 µin thickness, compatible with standard lead-free wave solder profiles.
Within the same series, the 1-215309-0 is a 20-position dual-row receptacle. A direct sibling with the same pitch and row spacing but different position count would be the 10-position version (e.g., 1-215308-0) or the 30-position version (1-215310-0) — all share the same 0.100-inch pitch, dual-row layout, and gold mating finish.
