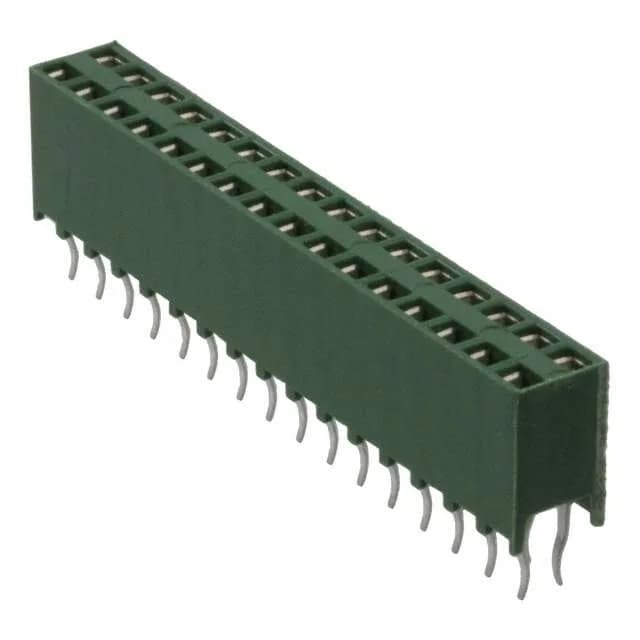

TE Connectivity AMP Connectors AMPMODU HV-100, Female Socket Header, 32 Positions, 2 Row, 0.100" (2.54mm) Pitch, Through Hole, Kinked Pin Solder Termination, Gold Mating Contact Finish
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black or Green |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 32 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 1-215309-6: The 0.100" (2.54mm) row spacing matches standard pin headers, allowing direct mating with a 32-position dual-row header from the same series. The post finish is tin-plated at 98.4µin (2.50µm), compatible with standard wave-solder processes.
This receptacle mates with a 32-position, dual-row, 0.100" pitch pin header from the AMPMODU HV-100 series. Confirm the header's contact finish (gold or tin) matches your mating cycle requirements.
