TE Connectivity AMP Connectors 1-215460-2 — Female Socket Headers

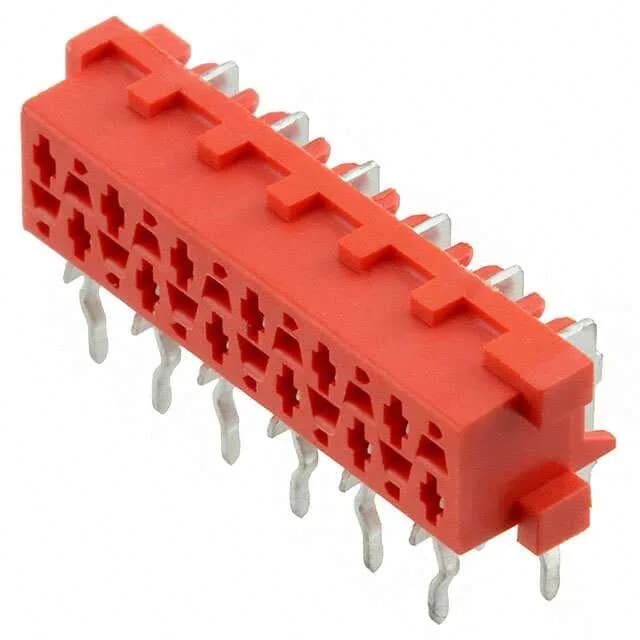

1-215460-2 TE Connectivity Micro-MaTch 12-Position

MPN1-215460-2
Active

TE Connectivity AMP Connectors Micro-MaTch receptacle, 12 positions, 2 rows, 0.100" (2.54mm) pitch, tin-plated forked contacts, right-angle through-hole termination, UL94 V-0 PBT housing, rated 100 VDC, -40°C to 105°C.

$0.7193Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-215460-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-215460-2 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingThrough Hole, Right Angle
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating100VDC
Operating temperature-40°C~105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.228\" (5.80mm)
Insulation materialPolybutylene Terephthalate (PBT), Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

1-215460-2 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR); Cut Tape (CT)
TerminationKinked Pin, Solder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingTin

Product details

12-Position Dual-Row Right-Angle Receptacle

The 1-215460-2: The kinked pins provide retention during soldering before the solder joint sets.

Pitch, Rows, and Board Footprint

A 12-position, 2-row receptacle occupies roughly 0.6" along the board edge, leaving room for adjacent connectors or passives. The insulation height of 0.228" (5.80mm) and post length of 0.122" (3.10mm) define the z-height above the PCB and the solder tail reach through the board — confirm the board thickness and clearance before layout.

ROHS3 compliant.

Frequently asked questions

What is the pitch of 1-215460-2?

The mating pitch is 0.100" (2.54mm), with the same 0.100" row spacing — the standard 0.1-inch dual-row grid.

Is 1-215460-2 RoHS compliant?

Yes, it is ROHS3 compliant.

How many rows does 1-215460-2 have?

Two rows, with all 12 positions loaded.
