TE Connectivity AMP Connectors, Micro-MaTch series, Female Socket Header, 16 positions, 2.54 mm pitch, through-hole right-angle, tin-plated contacts, UL94 V-0, -40°C to 105°C, Board to Board or Cable style.

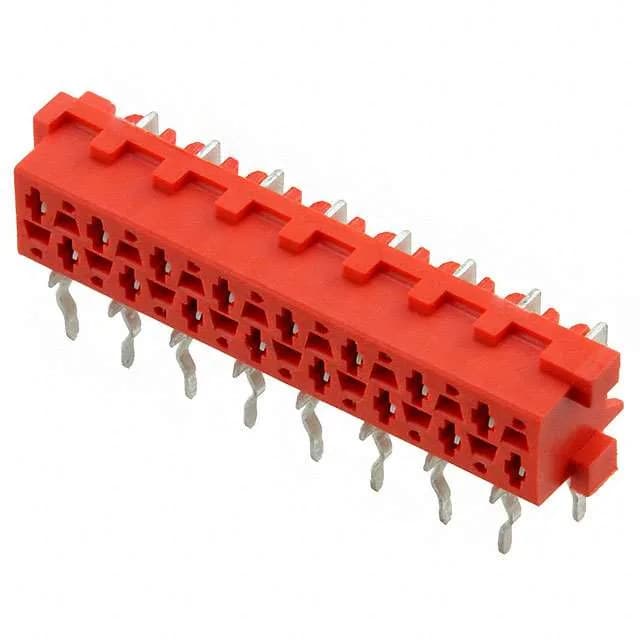

1-215460-6 TE Connectivity Micro-MaTch 16-Pin Female Socket
MPN1-215460-6
Active
TE Connectivity AMP Connectors, Micro-MaTch series, Female Socket Header, 16 positions, 2.54 mm pitch, through-hole right-angle, tin-plated contacts, UL94 V-0, -40°C to 105°C, Board to Board or Cable style.
$1.8000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Box (TB) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
Is 1-215460-6 RoHS compliant?
Yes, 1-215460-6 is ROHS3 Compliant.
