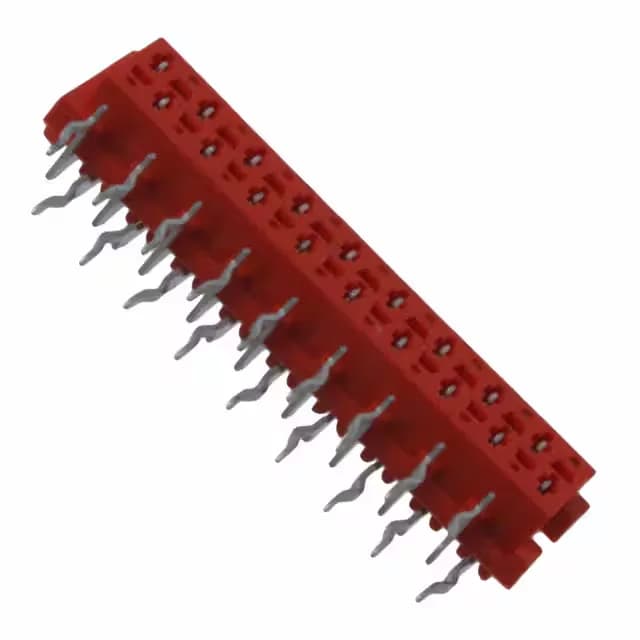

TE Connectivity AMP Connectors Micro-MaTch series receptacle, 18 positions, dual-row, 2.54 mm pitch, tin-plated phosphor bronze contacts, right-angle through-hole with kinked solder pins, push-pull fastening, -40°C to 105°C, UL94 V-0 red PBT housing.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
The 1-215460-8: In a vibration environment, the joint relies on the PCB solder anchors and any external strain relief on the cable.
Tin is cost-effective for low-cycle applications — expect limited mating cycles before contact resistance drifts. The contact base is phosphor bronze, a standard spring alloy that holds its shape under repeated deflection. The kinked pin adds a mechanical lock in the plated through-hole after soldering, improving pull-out strength.
Yes, it is ROHS3 compliant.
