TE Connectivity AMP Connectors 1-215570-4 — Direct Wire-to-Board

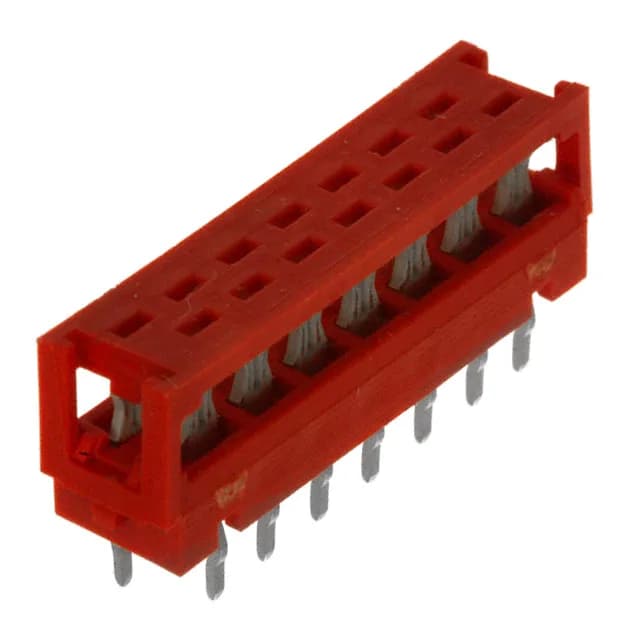

TE 1-215570-4 Micro-MaTch DIP Header, IDC, 14 Pos, 28 AWG

MPN1-215570-4
Active

TE Connectivity Micro-MaTch series, 1-215570-4, DIP IDC header, 14 positions, 2 rows, 0.050" (1.27mm) cable pitch, 0.100" (2.54mm) board pitch, 28 AWG, through hole press-fit, tin contacts, red housing.

$1.9000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-215570-4 specifications
ParameterValue
SeriesMicro-MaTch
MountingThrough Hole, Press-Fit
Connector typeRibbon Cable, DIP Header
Wire gauge28 AWG, Stranded or Solid
Cable pitch0.050\" (1.27mm)
Cable terminationIDC
ColorRed
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesFeed Through
Row spacing0.100\" (2.54mm)
Contact finishTin
Rows2
Board-Side pitch0.100\" (2.54mm)
Positions14

Product details

The TE Connectivity 1-215570-4 is a 14-position DIP header from the Micro-MaTch series, designed for IDC termination to 28 AWG ribbon cable. The press-fit through-hole mounting eliminates soldering — the compliant pins cold-form into the plated hole, making it a rework-friendly choice for backplane or high-reliability assemblies where you want to avoid heat stress on the board.

This header terminates ribbon cable via IDC — the contacts pierce the insulation and grip the conductor without stripping. Rated for 28 AWG stranded or solid wire.

Frequently asked questions

Is 1-215570-4 RoHS compliant and lead-free?

Yes, it is ROHS3 compliant.

Where can I buy 1-215570-4 and what is the lead time?

This part is active and sourced to order.
