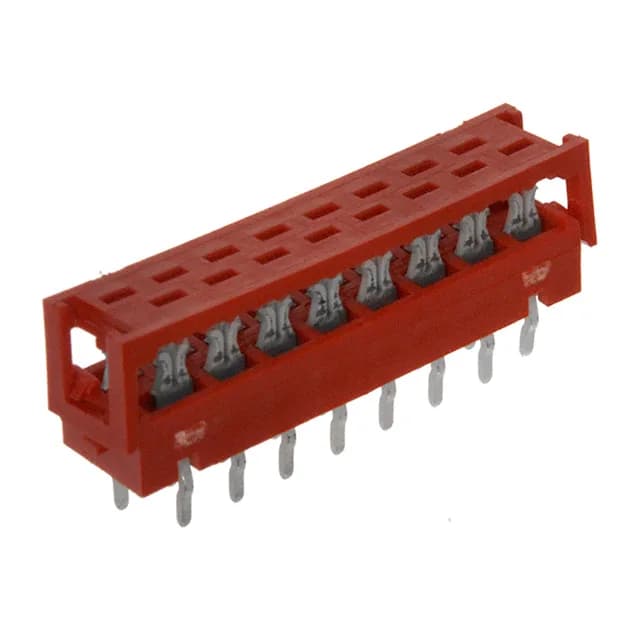

TE Connectivity Micro-MaTch series, Ribbon Cable DIP Header, IDC, 16 positions, 2 rows, 0.100" (2.54mm) board-side pitch, 0.050" (1.27mm) cable pitch, Through Hole Press-Fit, Tin contacts, Red, 28 AWG.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Mounting | Through Hole, Press-Fit |
| Connector type | Ribbon Cable, DIP Header |
| Wire gauge | 28 AWG, Stranded or Solid |
| Cable pitch | 0.050\" (1.27mm) |
| Cable termination | IDC |
| Color | Red |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Feed Through |
| Row spacing | 0.100\" (2.54mm) |
| Contact finish | Tin |
| Rows | 2 |
| Board-Side pitch | 0.100\" (2.54mm) |
| Positions | 16 |
The press-fit through-hole mounting means the header is pressed into plated holes on the PCB — no solder joint, which makes it rework-friendly and keeps the assembly lead-free. The red housing gives visual keying on the line — grab the right header at a glance.
The 1-215570-6 terminates 28 AWG wire, either stranded or solid, via its IDC contacts.
