TE Connectivity AMP Connectors 1-215882-0

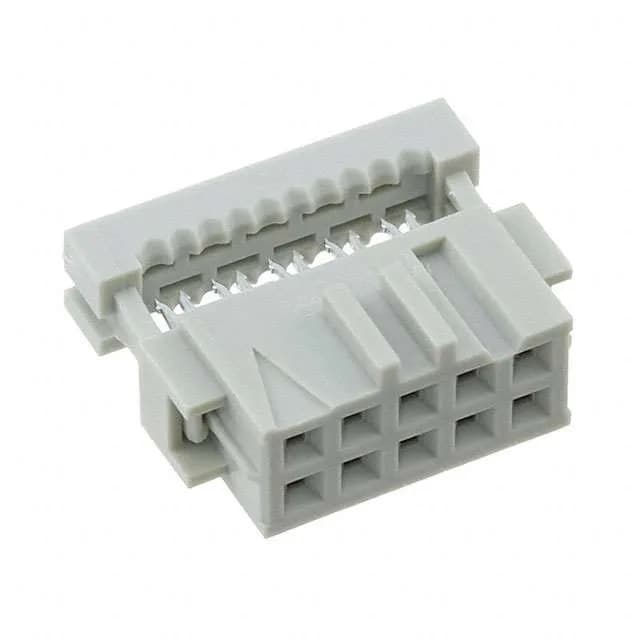

TE AMP-Latch 1-215882-0, 10-Pin IDC Receptacle, 0.100" Pitch

MPN 1-215882-0
Active

TE Connectivity AMP-Latch receptacle, 10 circuits, 2 rows, 0.100" (2.54 mm) pitch, IDC termination, gold-plated female sockets, free-hanging, gray, bulk.

$2.1600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-215882-0 specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge28 AWG, Stranded; 26-30 AWG, Solid
Cable terminationIDC
ColorGray
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through, Polarizing Key
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions10
Contact finish thickness31.5µin (0.80µm)

Product details

The 1-215882-0: It is the female half of a standard AMP-Latch interface, mating with the matching 0.100" pitch male header (typically from the AMP-Latch or similar 2.54 mm header family). The gray housing carries feed-through slots so multiple receptacles can be daisy-chained along a single ribbon cable, and the integral polarizing key prevents reverse insertion into the header. This connector is built for internal equipment wiring — think card-edge cable assemblies, drive interconnects, and panel-to-board harnesses where the IDC termination saves time over discrete crimp-and-stuff methods.

The wire gauge acceptance is 28 AWG stranded or 26-30 AWG solid, which covers the common ribbon cable sizes used in 0.100" pitch flat cable assemblies. A hand press or bench press tool (TE part number from the AMP-Latch tooling family) is required; the termination force is consistent across all 10 positions when the cable is aligned to the slot.

The female sockets carry 31.5 µ" (0.80 µm) gold over the contact finish.

The lifecycle status is Active — TE continues to manufacture this part, and there is no last-time-buy or obsolescence notice on record. The base product number is 215882, which covers the unkeyed variant; the full 1-215882-0 includes the polarizing key feature.

MPN
1-215882-0
