TE Connectivity AMP Connectors 1-216602-0

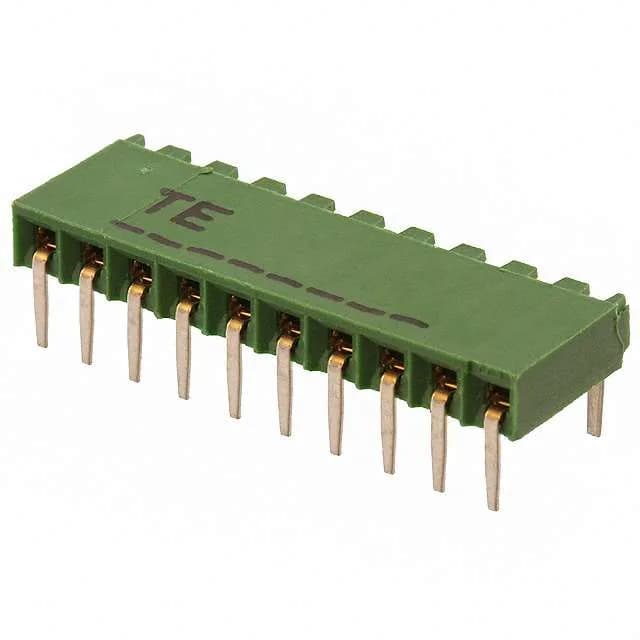

1-216602-0 TE AMPMODU HV 190 10-Position Right-Angle

MPN 1-216602-0
Active

TE Connectivity AMPMODU HV 190, 1-216602-0, 10-position single-row receptacle, 0.100" (2.54 mm) pitch, through-hole right-angle, gold mating finish, UL94 V-0, RoHS3 compliant, active production.

$2.8400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMPMODU HV 190
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-216602-0 key specifications
ParameterValue
SeriesAMPMODU HV 190
TypeFemale Socket
MountingThrough Hole, Right Angle
Connector typeReceptacle
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorGreen
Insulation height0.126\" (3.20mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTray

All specifications

1-216602-0 additional specifications
ParameterValue
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions10
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingGold
Contact finish thickness - post118.1µin (3.00µm)
Contact finish thickness - mating31.5µin (0.80µm)

Product details

What this receptacle does in the board stack

The 1-216602-0: It mounts through-hole, right-angle to the PCB, so the mating axis runs parallel to the board — useful where vertical stack height is tight and the connector needs to sit at the board edge.

Sourcing and compliance status

ROHS3 compliant, so it passes the EU material restriction check for new builds.
