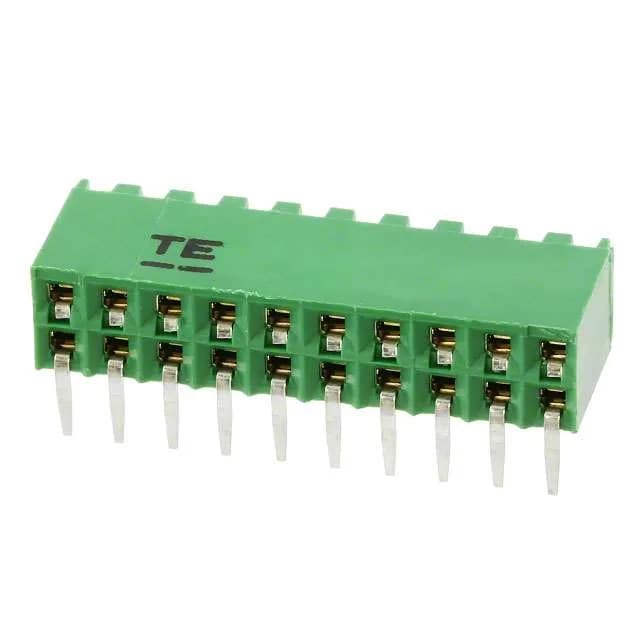

TE Connectivity AMP Connectors AMPMODU HV 190, 1-216604-0, Board to Board receptacle, 20 positions, 2 rows, 0.100" (2.54mm) pitch, Through Hole, Right Angle, Gold mating finish 31.5µin, Tin post finish, Green insulation, UL94 V-0, Active
| Parameter | Value |
|---|---|
| Series | AMPMODU HV 190 |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tray |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 1-216604-0: It mounts through-hole, right-angle, so the mated board sits perpendicular to the motherboard — useful where the mezzanine card needs to clear a tall component or enclosure wall. The green polyester housing is rated UL94 V-0.
