Sealed 2-Way Housing with Lever Lock Retention

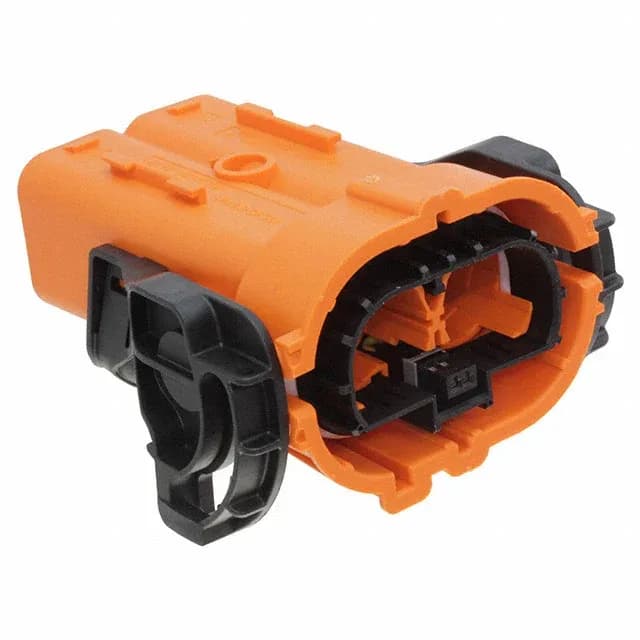

The 1-2177053-2 is a 2-position sealed receptacle housing from TE Connectivity's wire-to-board connector family, designed for free-hanging (in-line) mating with female socket contacts. The housing is molded in orange glass-filled nylon (PA) and uses a lever lock fastening system for positive retention in vibration-prone environments. Rated for continuous operation from -40°C to 140°C, this housing suits underhood automotive, industrial control cabinets, and outdoor equipment where thermal cycling and moisture ingress are concerns.
Critical Procurement Note: Contacts Not Included
Confirm the correct terminal part number from TE's application tooling documentation before placing the BOM.
Mates with a 2-position male header (not included) via the lever lock. The sealed feature indicates a gasket or O-ring integrated into the housing interface, providing environmental protection when mated with the corresponding sealed header. Verify the mating half's seal compatibility for a fully weatherproof assembly.
