TE Connectivity AMP Connectors 1-2199119-5

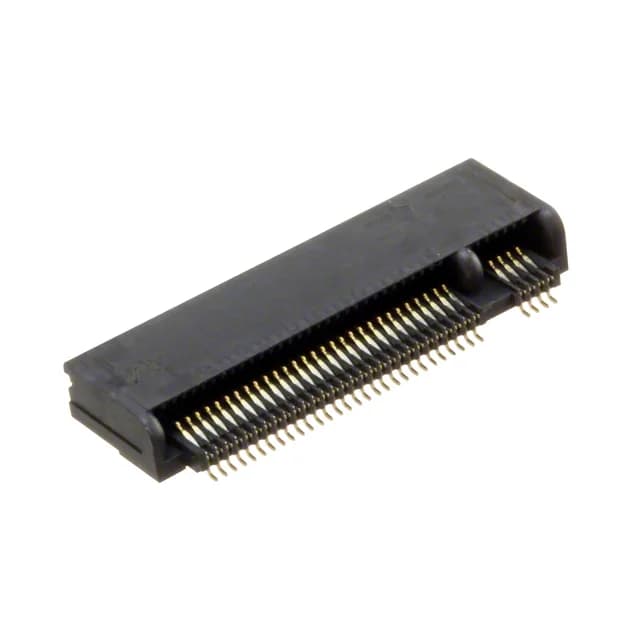

TE Connectivity 1-2199119-5 M.2 Female Connector, 67 Pos

MPN 1-2199119-5
Active

TE Connectivity M.2 female connector, 1-2199119-5, 67 positions, 0.020" (0.50mm) pitch, dual row, gold-plated contacts, surface mount right-angle.

$1.0362 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-2199119-5 specifications
ParameterValue
Card typeM.2 (NGFF) Mini Card
MountingSurface Mount, Right Angle
Operating temperature-40°C ~ 80°C
ColorBlack
Contact materialCopper Alloy
Material - insulationThermoplastic
Pitch0.020\" (0.50mm)
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide
Read outDual
TerminationSolder
Contact finishGold
Rows2
Positions67
Contact finish thickness15.0µin (0.38µm)

Product details

M.2 (NGFF) Card Edge Connector — 67-Position Surface-Mount Socket

The TE Connectivity 1-2199119-5 is a 67-position female M.2 (NGFF) card edge connector on a 0.020" (0.50 mm) pitch, designed to accept M.2 mini cards with a dual-row edge contact pattern. The connector uses a surface-mount, right-angle orientation, placing the card parallel to the PCB — typical for space-constrained SSD, Wi-Fi, or cellular modules inside laptops, tablets, and embedded systems. Gold-plated contacts (15.0 µin) on a copper alloy base provide reliable signal integrity across the rated -40°C to 80°C operating range.

A built-in board guide aligns the card during insertion, reducing the risk of contact stubbing. The right-angle SMT termination keeps the connector low-profile on the board edge, with the module sitting parallel to the PCB. The black thermoplastic housing carries no keying feature — the keying is on the M.2 card itself (B, M, or B+M notch).
