TE Connectivity AMP Connectors 1-2199119-6

TE 1-2199119-6 M.2 Connector, 67 Pos, 0.50 mm, Gold

MPN 1-2199119-6
Active

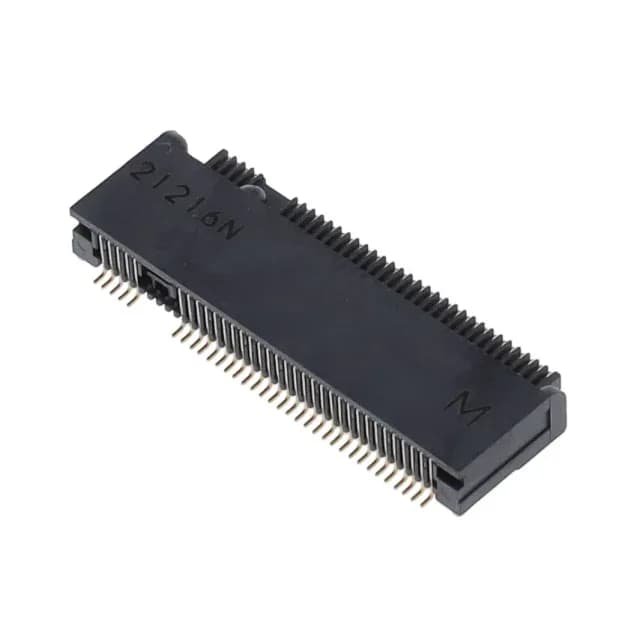

TE Connectivity 1-2199119-6 M.2 (NGFF) female edge connector, 67 positions, 0.50 mm pitch, dual-row, gold-plated contacts, right-angle surface mount, black thermoplastic housing.

$1.9000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-2199119-6 specifications
ParameterValue
Card typeM.2 (NGFF) Mini Card
MountingSurface Mount, Right Angle
Operating temperature-40°C ~ 80°C
ColorBlack
Contact materialCopper Alloy
Material - insulationThermoplastic
Pitch0.020\" (0.50mm)
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide
Read outDual
TerminationSolder
Contact finishGold
Rows2
Positions67
Contact finish thickness30.0µin (0.76µm)

Product details

The TE Connectivity 1-2199119-6 is a 67-position M.2 (NGFF) female edge card connector, the standard interconnect for M.2 Mini Cards in laptops, tablets, and embedded systems. It accepts M.2 modules with Key B or Key M edge fingers — the 67 contacts and 0.50 mm pitch match the NGFF specification for SSDs, WLAN cards, and other add-in modules. The dual-row readout and board guide feature align the card during insertion and keep the contacts registered across the full 67-position span.

The 0.020" (0.50 mm) pitch is the tightest standard M.2 pitch — it sets the trace width and spacing on the host PCB, so the footprint must match the NGFF land pattern exactly. The right-angle surface mount orientation mates the card parallel to the PCB plane, which is the typical M.2 layout for space-constrained enclosures.

M.2 Key Compatibility — What Fits

This connector is the female edge card receptacle for M.2 (NGFF) modules. It accepts both Key B and Key M cards — the 67-position layout with the dual-row readout is the standard NGFF interface for both keying variants.

MPN
1-2199119-6
