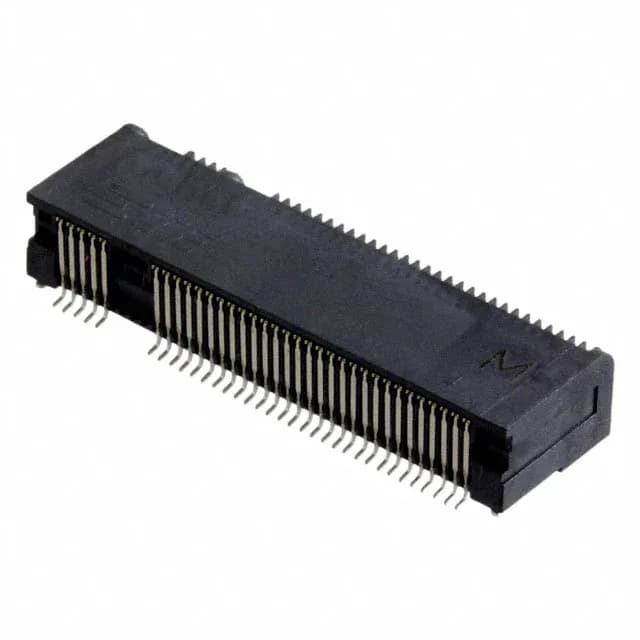

TE 1-2199230-6 M.2 Female Connector, 67 Pos, 0.50mm

MPN1-2199230-6
Active

TE Connectivity M.2 female connector, 1-2199230-6, 67 positions, 0.020" (0.50mm) pitch, dual readout, right-angle SMT, gold 30.0µin contact finish, black thermoplastic housing with board guide.

$1.9400Ref. price · indicative, final on quote
RoHSRoHS Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-2199230-6 specifications
ParameterValue
Card typeM.2 (NGFF) Mini Card
MountingSurface Mount, Right Angle
Operating temperature-40°C ~ 80°C
ColorBlack
Contact materialCopper Alloy
Material - insulationThermoplastic
Pitch0.020\" (0.50mm)
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide
Read outDual
TerminationSolder
Contact finishGold
Rows2
Positions67
Contact finish thickness30.0µin (0.76µm)

Product details

The TE Connectivity 1-2199230-6 is a 67-position M.2 (NGFF) female connector — the socket that lives on the motherboard and accepts an M.2 module such as an SSD, Wi-Fi card, or cellular modem.

This is a right-angle surface-mount part — the solder tails are on the bottom side of the connector body, and the M.2 module slides in parallel to the motherboard. The black thermoplastic insulation housing is rated for the -40°C to 80°C operating range typical of consumer and industrial SSD applications. The 0.50 mm pitch means the PCB footprint needs fine-line routing — expect tighter trace widths and spacing than a 0.80 mm or 1.00 mm pitch connector would allow.

It is RoHS compliant. The base product number is 2199230, and the closest functional peer is the 1-2199230-5 (same 67 positions, same 0.50 mm pitch, same right-angle SMT) with the sole difference being a 15.0 µin gold finish instead of 30.0 µin — a cost-versus-durability trade-off, not a fit or performance change.

Frequently asked questions

What M.2 key does 1-2199230-6 support?

The connector itself is key-agnostic — it is a 67-position female socket that accepts any M.2 module with the same edge connector count. The keying is determined by the module's own notch and the socket's plastic key wall, which varies by the specific M.2 key standard (B, M, B+M, etc.). The part number does not specify a key; confirm the keying matches your module's mechanical interface before ordering.
