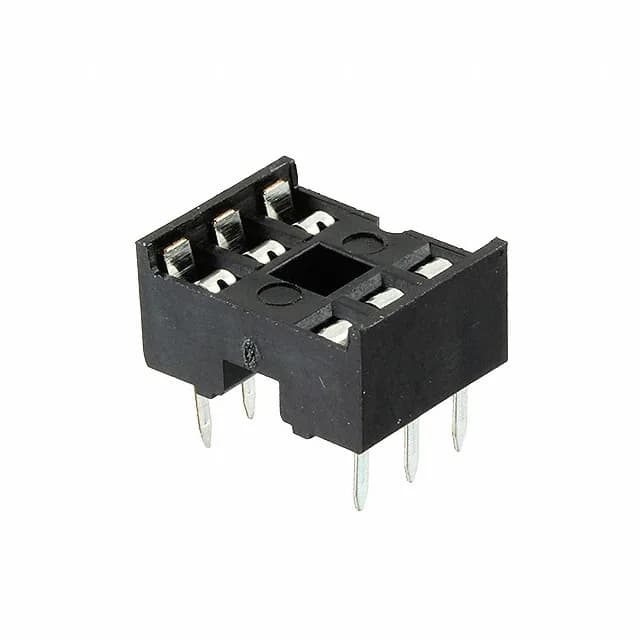

TE Connectivity AMP Connectors Diplomate DL series DIP socket, 6 positions (2 x 3), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, through-hole solder termination, tin-plated contacts, open-frame PBT housing, rated 1 A per contact.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -40°C ~ 105°C |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact material - post | Brass, Copper |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 20mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.118\" (3.00mm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
| Number of positions or pins | 6 (2 x 3) |
The 1-2199298-1: That 0.3" row spacing is the standard for narrow DIP ICs — think 6-pin op-amps, voltage regulators, or optocouplers in a DIP-6 package. The open-frame PBT housing lets air flow under the IC, which helps with convection cooling in through-hole assemblies.
The post tails are tin-plated brass.
This matches standard narrow DIP ICs.
Yes, it is ROHS3 compliant.
