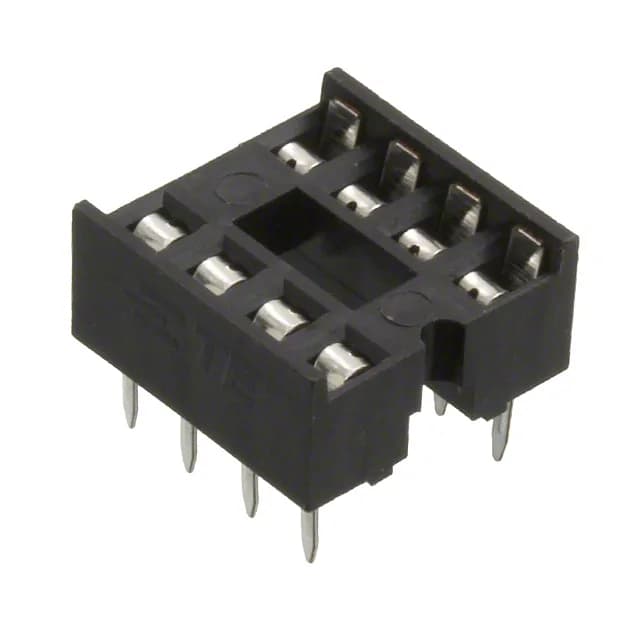

1-2199298-2 TE Connectivity DIP Socket 8 Pos Tin

MPN1-2199298-2
Active

TE Connectivity AMP Connectors Diplomate DL, DIP, 0.3" (7.62mm) Row Spacing, 8 (2 x 4) positions, Through Hole, Solder, Tin contact finish, 1 A, -40°C ~ 105°C

$0.2000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-2199298-2 datasheet (PDF)
RoHSRoHS Compliant
SeriesDiplomate DL
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-2199298-2 key specifications
ParameterValue
TypeDIP, 0.3\" (7.62mm) Row Spacing
SeriesDiplomate DL
MountingThrough Hole
Current rating1 A
Operating temperature-40°C ~ 105°C
Housing materialPolybutylene Terephthalate (PBT), Glass Filled
Contact material - postBrass, Copper
Contact material - matingPhosphor Bronze
Material flammability ratingUL94 V-0
PackageTube
FeaturesOpen Frame
TerminationSolder

All specifications

1-2199298-2 additional specifications
ParameterValue
Pitch - post0.100\" (2.54mm)
Pitch0.100\" (2.54mm)
Contact resistance20mOhm
Contact finish - postTin
Contact finish - matingTin
Termination post length0.118\" (3.00mm)
Contact finish thickness - mating60.0µin (1.52µm)
Number of positions or pins8 (2 x 4)

Product details

DIP socket for 8-pin logic ICs

The 1-2199298-2 is an 8-position DIP socket from TE's Diplomate DL series, laid out in a 2 x 4 grid on 0.100" pitch with 0.3" row spacing — the standard footprint for 8-pin DIP packages like op-amps, comparators, and logic gates. Rated 1 A per contact, this socket is built for signal-level currents, not power delivery.

Open-frame construction and through-hole mounting

The open-frame design lets air circulate under the IC, which helps with heat dissipation in confined layouts. The post finish is tin, matching the mating finish for a uniform metallurgy.

Frequently asked questions

Is 1-2199298-2 RoHS compliant?

Yes, 1-2199298-2 is RoHS compliant per the TE Connectivity compliance declaration.

What is the current rating of 1-2199298-2?

The current rating is 1 A per contact, typical for signal-level IC sockets.

What is the difference between 1-2199298-2 and 1-2199298-1?

Both are Diplomate DL DIP sockets; the difference is position count. 1-2199298-2 is an 8-position socket, while 1-2199298-1 is a 6-position socket. Pitch and row spacing are identical.
