TE Connectivity AMP Connectors 1-2199298-4 — IC & Device Sockets

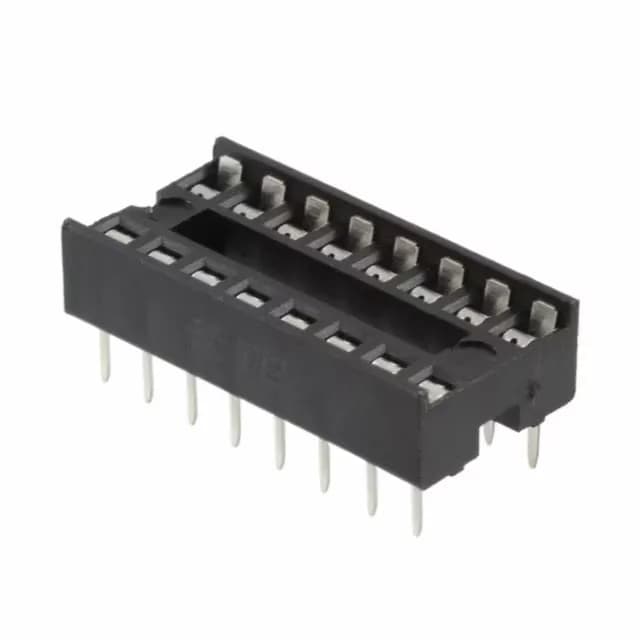

1-2199298-4 DIP Socket 16-Pin Tin TE Connectivity

MPN1-2199298-4
Active

TE Connectivity AMP Connectors Diplomate DL DIP socket, 16 positions (2 x 8), 0.100" (2.54 mm) pitch, 0.3" (7.62 mm) row spacing, tin mating finish, 1 A rating, through-hole solder termination, UL94 V-0 housing.

$0.3000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-2199298-4 datasheet (PDF)
RoHSRoHS Compliant
SeriesDiplomate DL
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-2199298-4 key specifications
ParameterValue
TypeDIP, 0.3\" (7.62mm) Row Spacing
SeriesDiplomate DL
MountingThrough Hole
Current rating1 A
Operating temperature-40°C~105°C
Housing materialPolybutylene Terephthalate (PBT), Thermoplastic, Glass Filled
Contact material - postBrass, Copper
Contact material - matingPhosphor Bronze
Material flammability ratingUL94 V-0
PackageTube
FeaturesOpen Frame
TerminationSolder

All specifications

1-2199298-4 additional specifications
ParameterValue
Pitch - post0.100\" (2.54mm)
Pitch0.100\" (2.54mm)
Contact resistance20mOhm
Contact finish - postTin
Contact finish - matingTin
Termination post length0.118\" (3.00mm)
Contact finish thickness - mating60.0µin (1.52µm)
Number of positions or pins16 (2 x 8)

Product details

16-Pin DIP Socket for 0.3" IC Bodies

The 1-2199298-4: This Diplomate DL socket accepts standard 16-pin DIP ICs with a 0.3" (7.62 mm) row spacing — the most common footprint for 8- to 20-pin logic, op-amp, and memory devices.

Open-Frame Construction and Solder Termination

The open-frame design leaves the IC body exposed for airflow, aiding thermal dissipation in elevated-temperature applications up to 105°C. Contact resistance is specified at 20 mOhm, which keeps the voltage drop negligible for logic-level signals.

Frequently asked questions

What is the pin pitch and row spacing of 1-2199298-4?

The pin pitch is 0.100" (2.54 mm) and the row spacing is 0.3" (7.62 mm) — standard for 16-pin DIP ICs.

Is 1-2199298-4 RoHS compliant?

Yes, it is RoHS compliant.
