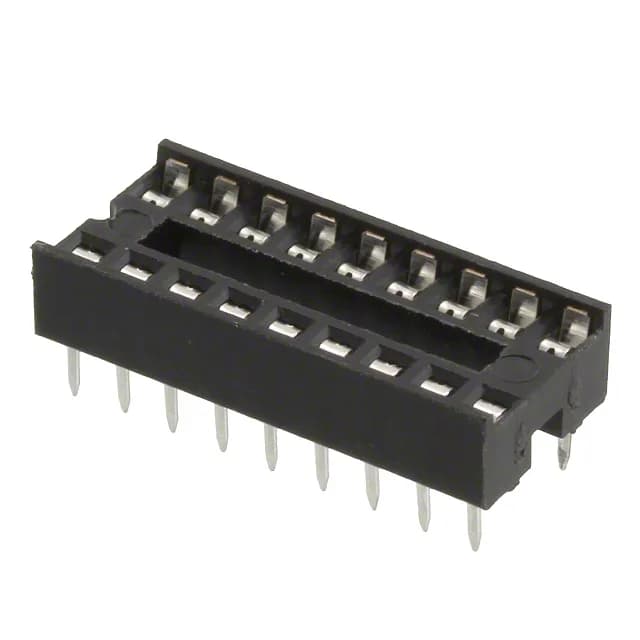

TE Connectivity AMP Connectors Diplomate DL, DIP, 0.3" (7.62mm) Row Spacing, 18 (2 x 9) Positions, Through Hole, Solder, Tin Mating Finish, 1 A, -40°C ~ 105°C, UL94 V-0
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -40°C ~ 105°C |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact material - post | Brass, Copper |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 20mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.118\" (3.00mm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
| Number of positions or pins | 18 (2 x 9) |
The 1-2199298-5: Rated at 1 A per contact, it handles typical logic-level signals without issue, and the tin mating finish (60.0µin thick) is suited for applications with moderate insertion cycles.
Supplied in tube packaging.
This is a standard 18-pin DIP (2 x 9) layout.
The mating contacts are tin-plated with a thickness of 60.0µin (1.52µm). The post finish is also tin. This is a cost-effective choice for applications that don't need the high cycle life of gold.
It is rated at 1 A per contact. This is typical for signal-level DIP sockets; derate if operating near the upper temperature limit of 105°C.
