TE Connectivity AMP Connectors 1-2199298-6 — IC & Device Sockets

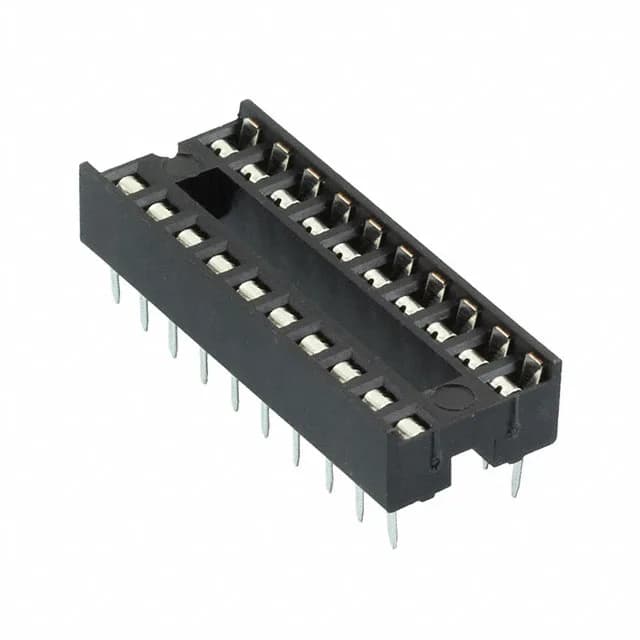

1-2199298-6 TE Connectivity DIP Socket 20-Pin Tin 0.3" Row

MPN1-2199298-6
Active

TE Connectivity AMP Connectors Diplomate DL DIP socket, 20 positions (2 x 10), 0.100" (2.54 mm) pitch, 0.3" (7.62 mm) row spacing, through-hole solder termination, tin-plated contacts, open-frame PBT housing, rated 1 A per contact.

$0.4700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDiplomate DL
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-2199298-6 key specifications
ParameterValue
TypeDIP, 0.3\" (7.62mm) Row Spacing
SeriesDiplomate DL
MountingThrough Hole
Current rating1 A
Operating temperature-40°C ~ 105°C
Housing materialPolybutylene Terephthalate (PBT), Glass Filled
Contact material - postBrass, Copper
Contact material - matingPhosphor Bronze
Material flammability ratingUL94 V-0
PackageTube
FeaturesOpen Frame
TerminationSolder

All specifications

1-2199298-6 additional specifications
ParameterValue
Pitch - post0.100\" (2.54mm)
Pitch0.100\" (2.54mm)
Contact resistance20mOhm
Contact finish - postTin
Contact finish - matingTin
Termination post length0.118\" (3.00mm)
Contact finish thickness - mating60.0µin (1.52µm)
Number of positions or pins20 (2 x 10)

Product details

Socket identity and mechanical fit

The 1-2199298-6: The open-frame design lets air circulate under the IC, which helps with heat dissipation in sockets carrying near-rated current.

Current, contact resistance, and plating

Mating surface is tin plated to 60 μin (1.52 μm) — that thickness gives good corrosion resistance for moderate mating cycles (50-100 mates) in indoor environments, but for high-cycle or corrosive-duty applications you'd want a gold-plated sibling.

RoHS3 compliant, so it fits assemblies shipping into EU or RoHS-regulated markets without exemption paperwork.

Frequently asked questions

Is 1-2199298-6 RoHS compliant?

Yes, it is RoHS3 compliant, so it meets the current EU RoHS directive without exemptions.

What is the current rating and contact resistance of 1-2199298-6?

Rated 1 A per contact with a contact resistance of 20 mOhm. The 1 A limit is per-contact at the stated temperature range; derate above 105°C.

Is 1-2199298-6 suitable for automatic insertion?

The socket is through-hole solder termination in a tube package — it can be handled by automatic insertion equipment that feeds tube-packaged DIP sockets, but the tube packaging (not tape-and-reel) may require a tube feeder on the pick-and-place machine.
