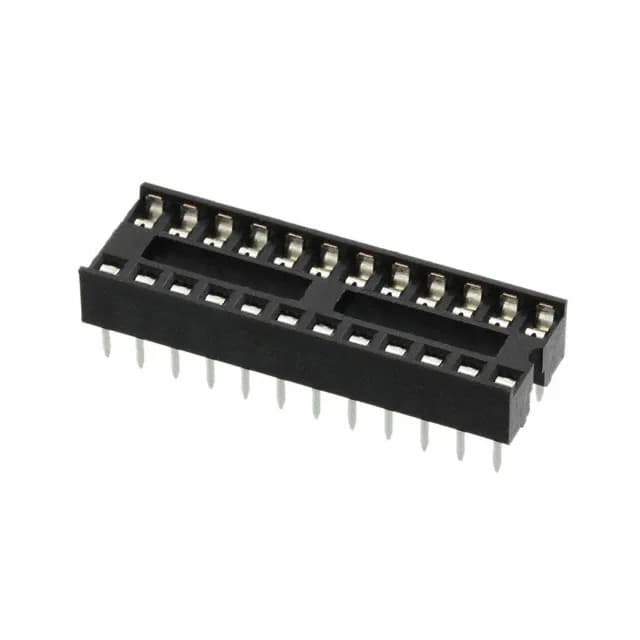

TE Connectivity AMP Diplomate DL, DIP socket, 24 positions (2 x 12), 0.100" (2.54 mm) pitch, 0.3" (7.62 mm) row spacing, through hole, solder termination, tin plating, 1 A, -40°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -40°C ~ 105°C |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact material - post | Brass, Copper |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 20mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.118\" (3.00mm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
| Number of positions or pins | 24 (2 x 12) |
Termination is solder via through-hole pins; the post length is 0.118" (3.00 mm), which suits standard PCB thicknesses around 1.6 mm. Contact posts are brass or copper with tin finish; the mating contacts are phosphor bronze for spring retention.
1-2199298-8 is an active TE Connectivity part.
