TE Connectivity AMP Connectors Diplomate DL DIP socket, 28 positions (2 x 14), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, tin-plated contacts, through-hole solder termination, open-frame construction, UL94 V-0 rated.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -40°C ~ 105°C |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact material - post | Brass, Copper |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 20mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.118\" (3.00mm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
| Number of positions or pins | 28 (2 x 14) |

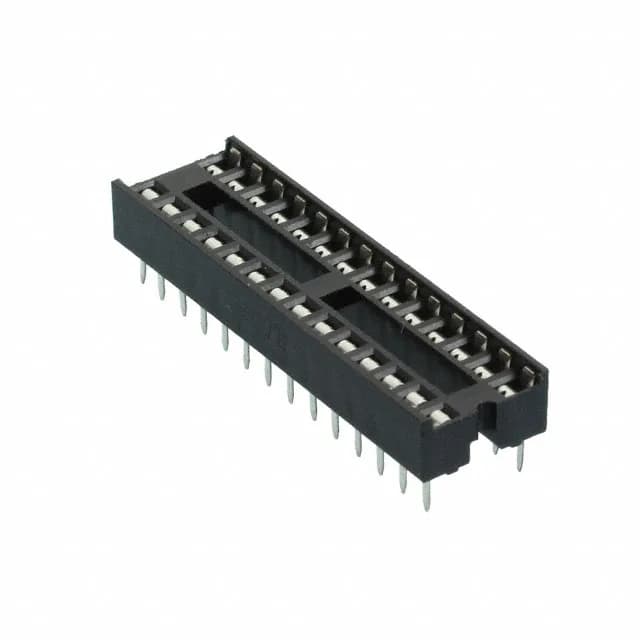

The 1-2199298-9: This is a 28-position DIP socket with 0.3" (7.62mm) row spacing — the standard footprint for a 28-pin DIP IC. That tin finish is fine for a few dozen insertion cycles in a clean environment; if you need hundreds of cycles or an industrial atmosphere, you'd be looking at the gold-plated sibling in the Diplomate DL series.
