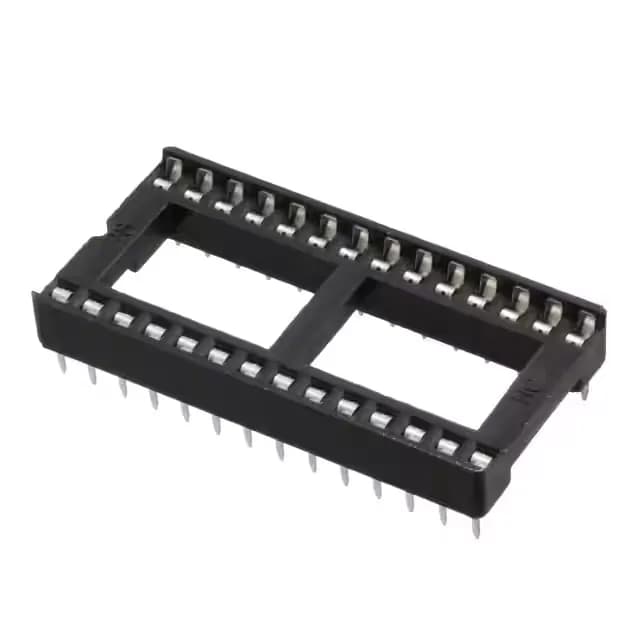

TE Connectivity AMP Connectors Diplomate DL DIP socket, 28 positions (2 x 14), 0.100" (2.54 mm) pitch, 0.6" (15.24 mm) row spacing, through-hole solder termination, tin-plated contacts, open-frame construction, UL94 V-0 PBT housing.
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -40°C~105°C |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact material - post | Nickel |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 20mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.118\" (3.00mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
| Number of positions or pins | 28 (2 x 14) |
The 1-2199299-2: Rated 1 A per contact with 20 mOhm contact resistance, it handles signal-level loads typical of logic, memory, and interface ICs — not bus bars or power distribution. The open-frame construction aids airflow around the IC body, which helps manage heat in densely populated boards.
Tin-plated mating contacts (60 µinch) and tin-plated posts keep the bill of materials low for production runs where gold is not required.
The row spacing is 0.600" (15.24 mm), which fits standard 28-pin DIP ICs.
28 pins arranged in a 2 x 14 grid.
Yes, it is listed as RoHS Compliant.
