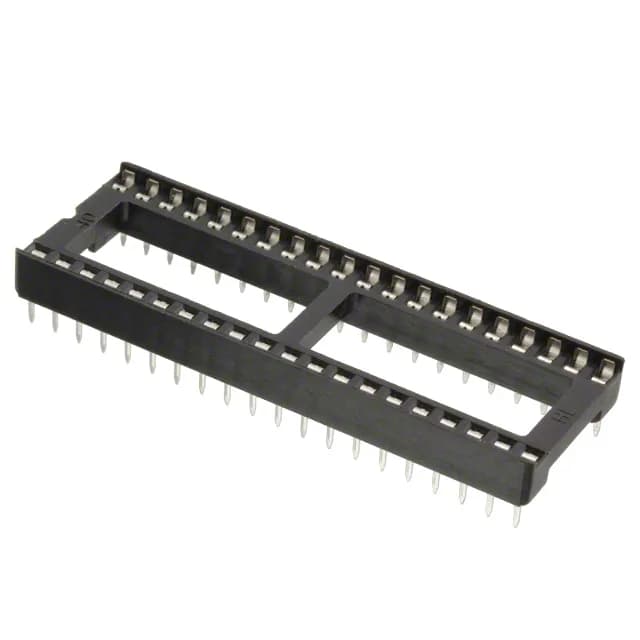

TE Connectivity AMP Connectors Diplomate DL, DIP socket, 40 (2 x 20) positions, 0.6" (15.24mm) row spacing, 0.100" (2.54mm) pitch, 1 A, tin-plated phosphor bronze contacts, through-hole solder termination, open-frame PBT housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -40°C ~ 105°C |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact material - post | Nickel |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 20mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.118\" (3.00mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
| Number of positions or pins | 40 (2 x 20) |
The 1-2199299-5: It accepts DIP packages with the same footprint — the open-frame design allows airflow under the IC and eases inspection of solder joints on the board side.
Termination post length is 0.118" (3.00mm) — a standard through-hole length that suits most PCB thicknesses in the 1.6 mm range.
Yes, it is ROHS3 compliant.
The pitch on both the mating side and post side is 0.100" (2.54mm).
Rated 1 A per contact — intended for signal-level ICs, not power devices.
