TE Connectivity AMP Connectors 1-2199300-2 — IC & Device Sockets

1-2199300-2 TE Connectivity DIP Socket 32 Position Tin-Lead

MPN1-2199300-2
Active

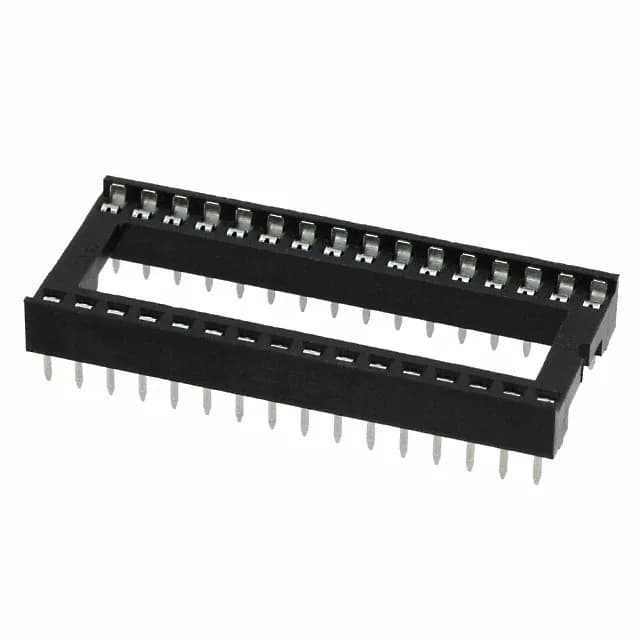

TE Connectivity AMP Connectors Diplomate DL DIP socket, 32 positions (2 x 16), 0.100" (2.54mm) pitch, 0.6" (15.24mm) row spacing, open frame, no center bar, tin-lead plating, through-hole solder termination, rated 1 A per contact, -55°C to 125°C, UL94 V-0 polyester housing.

$0.4500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDiplomate DL
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-2199300-2 key specifications
ParameterValue
TypeDIP, 0.6\" (15.24mm) Row Spacing
SeriesDiplomate DL
MountingThrough Hole
Current rating1 A
Operating temperature-55°C ~ 125°C
Housing materialPolyester
Contact material - postBrass, Copper
Contact material - matingPhosphor Bronze
Material flammability ratingUL94 V-0
PackageTube
FeaturesOpen Frame, No Center Bar
TerminationSolder

All specifications

1-2199300-2 additional specifications
ParameterValue
Pitch - post0.100\" (2.54mm)
Pitch0.100\" (2.54mm)
Contact resistance20mOhm
Contact finish - postTin-Lead
Contact finish - matingTin-Lead
Termination post length3.000\" (76.20mm)
Contact finish thickness - post60.0µin (1.52µm)
Contact finish thickness - mating60.0µin (1.52µm)
Number of positions or pins32 (2 x 16)

Product details

DIP socket for 32-pin ICs with 0.6-inch row spacing

The 1-2199300-2: Rated 1 A per contact, this socket is suited for signal-level logic, memory, or microcontroller ICs — not for power devices that draw more than 1 A per pin.

Tin-lead plating and temperature range

Contact resistance is specified at 20 mOhm, typical for a machined-contact DIP socket of this class.

It is ROHS3 compliant and ships in tube packaging. The base product number is 2199300; the full order code 1-2199300-2 is the specific variant with tin-lead plating and a 3.000" (76.20mm) termination post length.

Frequently asked questions

Where can I buy 1-2199300-2?

1-2199300-2 is available to order through our distribution channel. Submit an RFQ with your target quantity and we will confirm current pricing and lead time at quote time.

What is the pin pitch of 1-2199300-2?

The pitch is 0.100" (2.54mm) on both the mating side and the post side, with a row spacing of 0.6" (15.24mm) — matching standard 32-pin DIP ICs.

Is 1-2199300-2 RoHS compliant?

Yes, it is ROHS3 compliant.

Does 1-2199300-2 have a center bar?

No, it is an open-frame socket with no center bar, so it accepts ICs with a center notch and allows airflow under the package.
