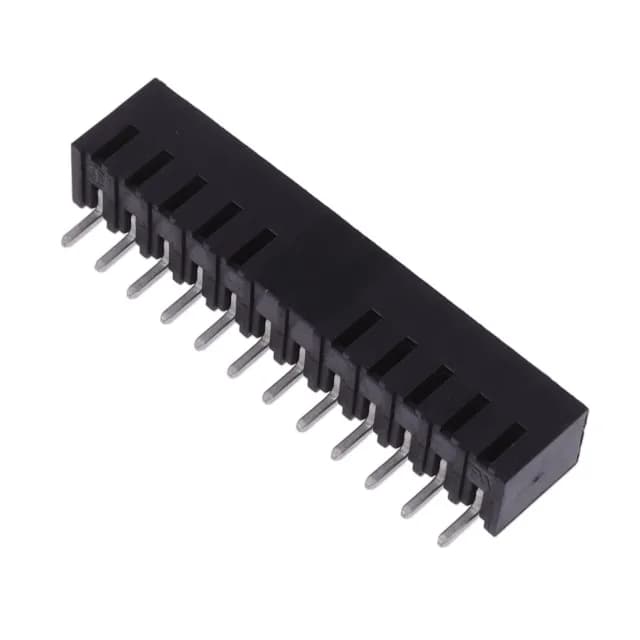

TE Connectivity AMP Connectors 1-2213932-2 — Header Plugs & Sockets

1-2213932-2 TE Connectivity Header, 12 Pos, 3.5mm, SMT

MPN1-2213932-2
Active

TE Connectivity AMP Connectors WireMate, TB, Buchanan series, 1-2213932-2, Header, Male Pins, Shrouded (4 Side), 12 positions, 0.138" (3.50mm) pitch, 8 A, 300 V, Surface Mount, Right Angle, Tin mating finish, UL94 V-0

$5.0484Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-2213932-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesWireMate, TB, Buchanan
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-2213932-2 specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesWireMate, TB, Buchanan
MountingSurface Mount
Voltage - UL300 V
Current - UL8 A
ColorBlack
Contact materialCopper Alloy
Housing materialThermoplastic
Insulation height0.287\" (7.30mm)
Material flammability ratingUL94 V-0
Pitch0.138\" (3.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
Number of levels1
Termination styleSolder
Header orientation90°, Right Angle
Positions12
Positions per level12
Contact mating finishTin

Product details

Board-mount right-angle header for power distribution

The 1-2213932-2: This 12-position shrouded header from the WireMate, TB, Buchanan series mates with a matching plug to carry 8 A per contact at 300 V UL.

SMT termination and reflow considerations

Surface-mount termination eliminates through-hole soldering, but the right-angle body means the component's center of gravity shifts during reflow. Ensure the board layout includes adequate solder pad area and that the reflow profile matches the thermoplastic housing material.

Mating and contact finish

If the connector will see frequent reconnects or corrosive atmospheres, consider a gold-plated alternative in the same series. The header accepts the matching WireMate plug, which uses crimp terminals for field-termination flexibility.

Frequently asked questions

Is 1-2213932-2 surface mount?

Yes, it is a surface-mount (SMT) header with solder termination, right-angle orientation.

What is the pitch and current rating of 1-2213932-2?

Pitch is 0.138" (3.50mm). Current rating is 8 A per contact at 300 V UL.

What is the equivalent or replacement for 1-2213932-2?

The peer MPN 1-2213934-1 is functionally identical but packaged in bulk instead of tape and reel. Both are active and from the same series.
