TE Connectivity AMP Connectors 1-2314826-0 — Female Socket Headers

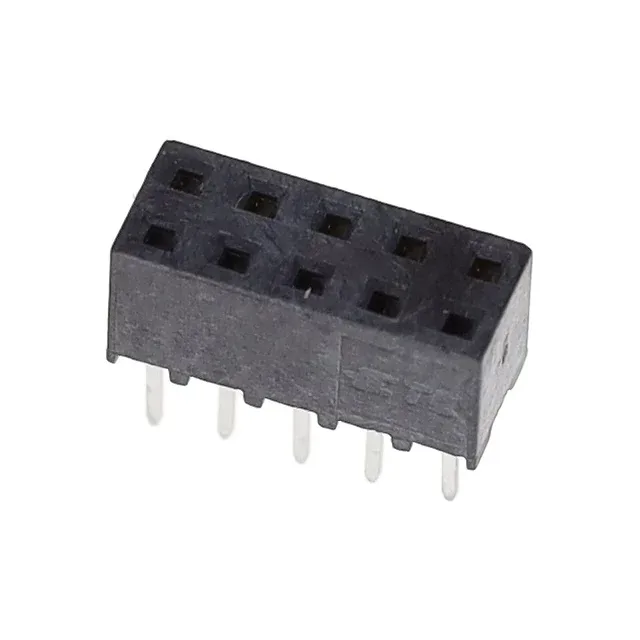

1-2314826-0 TE AMPMODU 10-Pin 2mm Female Socket Header

MPN1-2314826-0
Active

TE Connectivity AMPMODU 10-position, 2-row, 2.00 mm pitch board-to-board receptacle, through-hole solder termination, gold-plated female socket contacts, 2 A rating, UL94 V-0 black LCP housing.

$2.1300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-2314826-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-2314826-0 key specifications
ParameterValue
SeriesAMPMODU
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating125V
Current rating2A
Operating temperature-40°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.177\" (4.50mm)
Insulation materialLiquid Crystal Polymer (LCP)

All specifications

1-2314826-0 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
FeaturesPick and Place
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions10
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.106\" (2.69mm)
Contact finish - matingGold
Contact finish thickness - post118.1µin (3.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

2.00 mm Pitch, 10-Position Board-to-Board Receptacle

The 1-2314826-0: This AMPMODU receptacle is a 10-position, 2-row, 2.00 mm pitch board-to-board connector with a push-pull fastening system and through-hole solder tails. The housing is black LCP rated UL94 V-0, and the part ships in a tube with pick-and-place compatible features for automated assembly.

Gold-Plated Contacts for Repeated Mating

The tin-plated solder tails keep the board-level termination cost down without compromising the signal path.

Frequently asked questions

Where can I buy 1-2314826-0 and what is the lead time?

1-2314826-0 is an Active part from TE Connectivity, sourced through independent distribution. Submit an RFQ for current pricing and delivery.

What is the closest functional alternative to 1-2314826-0?

The peer 1-2823056-2 is a 12-position, 2.54 mm pitch receptacle with tin mating finish — different pitch and position count, so a board layout change is required.
