TE Connectivity AMP Connectors 1-2317222-0

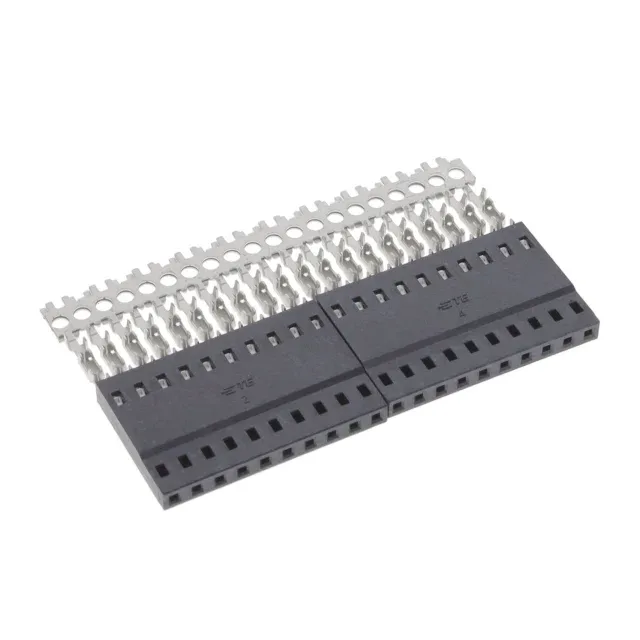

TE AMPMODU 1-2317222-0, 10-Pos IDC Receptacle, 2.00mm Pitch

MPN 1-2317222-0
Active

TE Connectivity AMPMODU 2mm IDC Receptacle, 1-2317222-0, 10 positions, 1 row, 0.079" (2.00mm) pitch, Tin contact finish, 50.0µin (1.27µm), Free Hanging, IDC termination, Closed End, Black, Tube.

$1.6500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMPMODU
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1-2317222-0 specifications
ParameterValue
SeriesAMPMODU
Wire typeDiscrete or Ribbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge26-30 AWG
Cable terminationIDC
ColorBlack
Pitch0.079\" (2.00mm)
PackageTube
FeaturesClosed End
Contact finishTin
Rows1
Positions10
Contact finish thickness50.0µin (1.27µm)

Product details

10-Position IDC Receptacle for 2.00 mm Pitch Ribbon Cable

It terminates discrete or ribbon cable (26-30 AWG) with an insulation-displacement contact that pierces the wire insulation in one press operation — no stripping, no crimping. The closed-end housing prevents the cable from pushing through the back of the slot during termination, which is the kind of subtle assembly headache that shows up when you're running a hundred cables and one pushes out. The black housing and closed-end feature are the main visual differentiators from the natural-color open-end version in the same series.

IDC Termination — Tooling and Wire Prep

IDC termination needs a manual or pneumatic press tool that drives the cable into the slot with controlled force. The 26-30 AWG range covers standard ribbon cable (28 AWG is the most common for 2.00 mm pitch IDC assemblies) and discrete wires if you're building a custom harness. The closed-end slot means the wire stops at a fixed depth — no risk of the conductor bottoming out inconsistently. The tin plating on the contact beam wipes through the oxide layer on the wire during insertion, establishing the gas-tight connection. For production runs, a bench press with a full-width die is faster than a hand tool; for prototypes or rework, a hand-operated IDC tool with the correct 2.00 mm die set will do the job.

This receptacle mates with any TE AMPMODU 2.00 mm pitch header that matches the 10-position, single-row layout. The header can be straight or right-angle, through-hole or SMT, depending on your board design. The 2.00 mm pitch is tighter than the classic 0.100" (2.54 mm) AMPMODU, so the header footprint is more compact — useful when board space is tight. The 1-2317222-0 is the black, closed-end variant; the same receptacle in natural color (without closed end) is also available in the AMPMODU 2 mm family.

MPN
1-2317222-0
