TE Connectivity AMP Connectors 1-282045-2

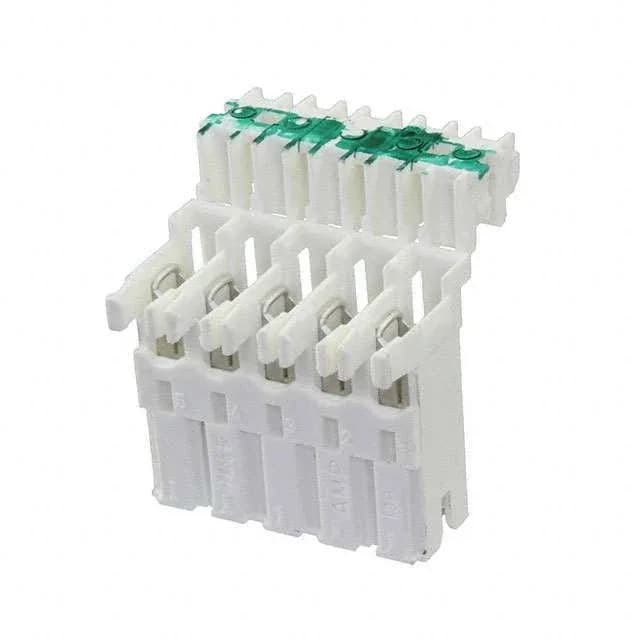

TE Connectivity 1-282045-2, Mark I 5-Pos IDC Receptacle

MPN 1-282045-2
Active

TE Connectivity Mark I receptacle, 5 positions, 0.197" (5.00mm) pitch, 1 row, IDC termination, tin contacts, free-hanging right-angle, natural.

$0.9000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMark I
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-282045-2 specifications
ParameterValue
SeriesMark I
Wire typeDiscrete
TypeFemale Blade Socket
MountingFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Cable terminationIDC
ColorNatural
Pitch0.197\" (5.00mm)
PackageTray
FeaturesMates to PCB
Contact finishTin
Rows1
Positions5

Product details

The female blade socket contacts accept a male header (mating half not included), and the free-hanging, right-angle orientation lets the wire exit parallel to the mating face, useful in tight enclosures where straight-out cable strain would conflict with the cover.

Termination and Wiring

The wire type is discrete (not ribbon cable), so each conductor is terminated individually. The receptacle is supplied in tray packaging, suited for hand-loading or pick-and-place if the assembly line handles trays.

MPN
1-282045-2
