Board-Mount Terminal Block, 10 Positions, 5.00 mm Pitch

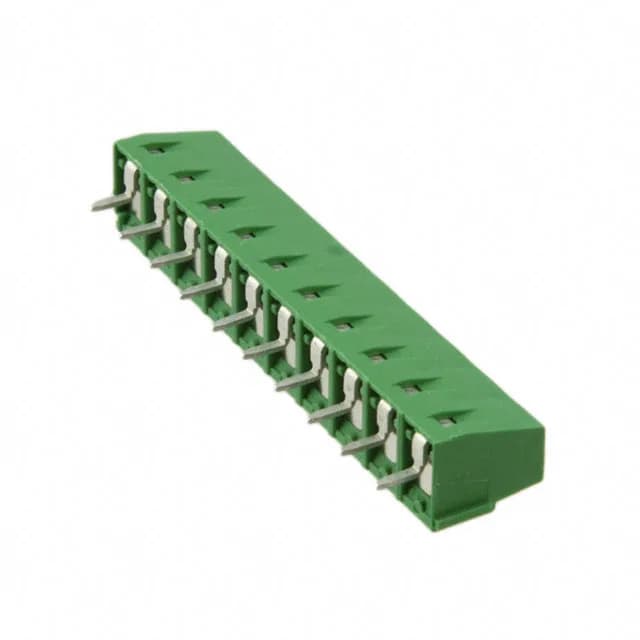

The TE Connectivity Buchanan 1-282836-0 is a 10-position, single-level PCB terminal block on 5.00 mm pitch. It terminates wires via a screw-driven rising cage clamp — the clamp lifts against the conductor, not the screw point, giving a gas-tight connection across the full 16-30 AWG range. The green polyamide housing is rated for 300 V and 13.5 A per position, with the M3 screw torqued to 0.68 Nm (6 Lb-In). Side interlocking lets you key multiple blocks together on the same pitch for higher circuit counts without separate bus bars.
Screw Clamp Termination and Wire Range
The rising cage clamp accepts solid or stranded wire from 16 AWG down to 30 AWG. The brass screw and clamp are nickel-plated; the contact surface is tin-plated brass. The specified torque of 0.68 Nm (6 Lb-In) ensures the clamp seats without stripping the M3 thread in the PA66 housing.
