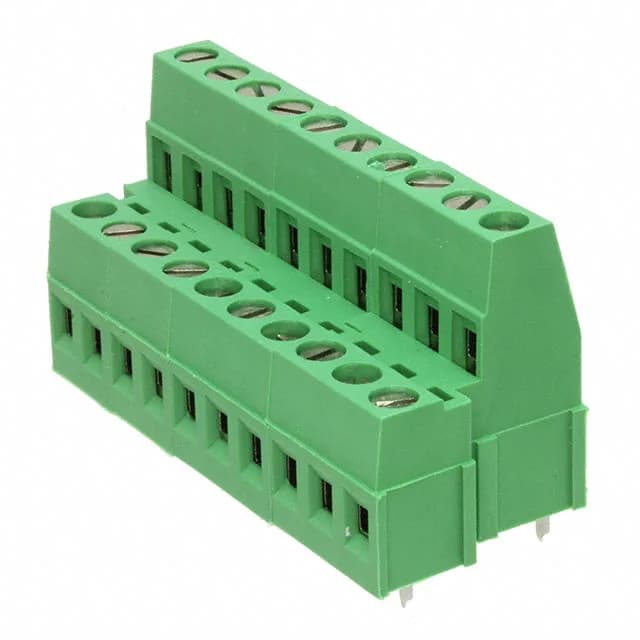

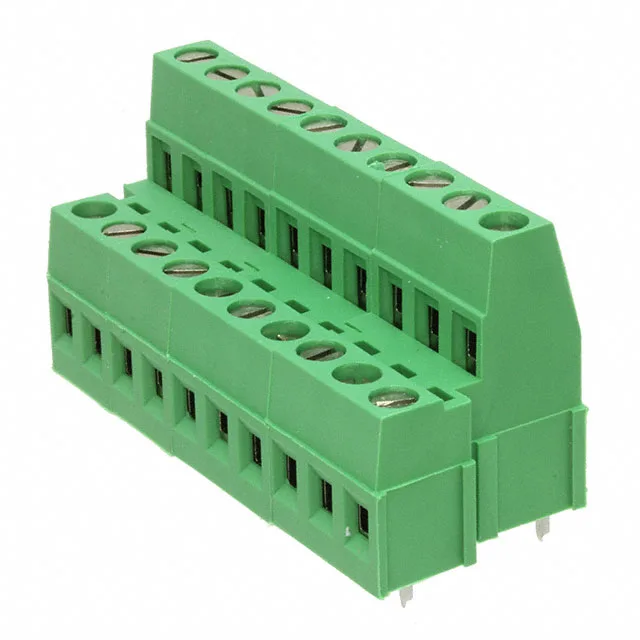

Terminal Block for 20-Circuit PCB Power Distribution
The 1-282888-1: The rising cage clamp termination accepts 12-30 AWG wire, secured by an M3 screw torqued to 0.79 Nm (7.0 Lb-In).
Wiring and Torque — What the Ratings Mean
The 17.5 A rating at 300 V per level is the continuous current limit at the rated temperature; above 105°C the block must be derated per the manufacturer's curve. The rising cage clamp grips the conductor directly — no ferrule required for stranded wire, but the M3 screw must be tightened to the specified 0.79 Nm (7.0 Lb-In) to maintain contact force and avoid thermal runaway under load. The 12-30 AWG range covers most panel wiring from motor leads to signal pairs.
Stacking and Ganging for Larger Builds
With 10 positions per level and 2 levels, this block packs 20 circuits into the same board footprint as a single-level 10-position block. The side interlocking feature lets multiple 1-282888-1 units snap together side-by-side on a DIN rail or panel — one family, fewer SKUs, no single-vendor lock.
