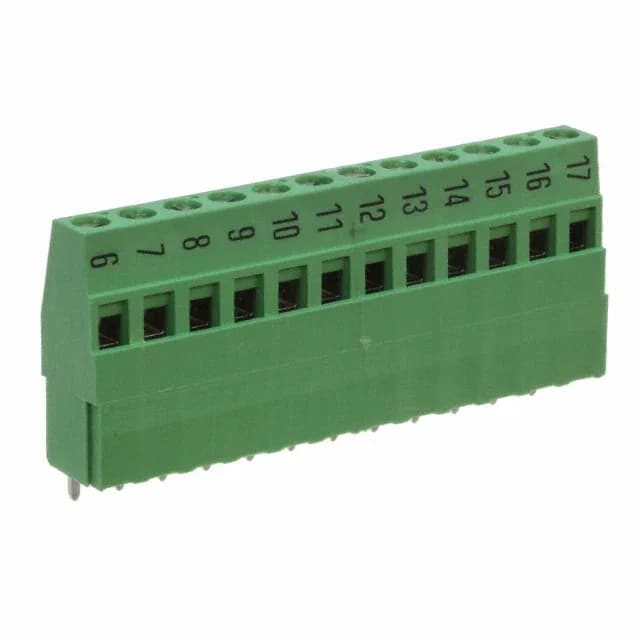

TE Connectivity 1-282901-2 Buchanan Terminal Block

MPN 1-282901-2
Active

TE Connectivity Buchanan 1-282901-2, 12-position PCB terminal block, 0.200" (5.08mm) pitch, single level, 17.5 A, 300 V, screw rising cage clamp, through-hole, green housing.

$10.8300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-282901-2 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage300 V
Current17.5 A
Wire gauge12-30 AWG
Wire terminationScrew - Rising Cage Clamp
Operating temperature-40°C ~ 105°C
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Nickel Plated
Screw material - platingBrass - Nickel Plated
Contact material - platingBrass - Tin Plated

All specifications

1-282901-2 additional specifications
ParameterValue
Pitch0.200\" (5.08mm)
PackageBulk
FeaturesInterlocking (Side), Mid Wire Entry Level, Positions Stamped
Screw threadM3
Torque - screw0.79 Nm (7.0 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level12

Product details

12-Position PCB Terminal Block, 5.08 mm Pitch

The TE Connectivity Buchanan 1-282901-2 is a 12-position, single-level PCB terminal block on a 0.200" (5.08mm) pitch. It terminates wires via a screw-driven rising cage clamp — the screw tightens a clamp that presses the wire against a current bar, giving a gas-tight connection without needing a ferrule. This is a through-hole mount block with a horizontal wire entry orientation — wires enter parallel to the PCB surface.

Ratings and Termination

The M3 screw is torqued to 0.79 Nm (7.0 Lb-In) — a controlled torque driver is recommended; under-torquing risks high contact resistance, over-torquing can strip the brass threads. The rising cage clamp accepts solid or stranded wire directly; the clamp material is brass with nickel plating, and the contact area is brass with tin plating — adequate for the current rating and the expected number of re-terminations in a panel environment.

Interlocking and Panel Layout

The housing features side interlocking — multiple blocks can be ganged together on the PCB to form a longer terminal strip without gaps. The positions are stamped on the housing for wire identification. Mid-wire entry level means the wire entry height is centered on the block profile, which keeps wiring consistent across a row of ganged blocks. For a 12-circuit BOM line, this single block covers the full count; no need to bridge multiple smaller blocks.
