TE Connectivity AMP Connectors 1-2834011-3

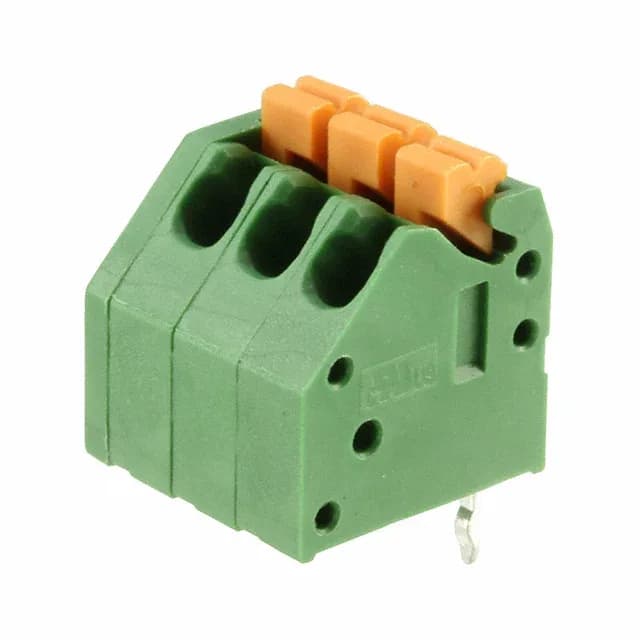

TE Connectivity 1-2834011-3 Terminal Block, 3.50mm Pitch

MPN 1-2834011-3
Active

TE Connectivity 1-2834011-3 terminal block, 3 positions, 0.138" (3.50mm) pitch, 6 A, 300 V, through-hole kinked pin, screwless push-in spring termination, green PA66 housing, bulk.

$0.6400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-2834011-3 specifications
ParameterValue
MountingThrough Hole, Kinked Pin
Voltage300 V
Current6 A
Wire gauge14-20 AWG
Wire terminationScrewless - Leg Spring, Push-In Spring
Operating temperature-40°C ~ 105°C
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Contact material - platingCopper Alloy - Tin Plated
Pitch0.138\" (3.50mm)
PackageBulk
Number of levels1
Mating orientationVertical with Board
Positions per level3

Product details

3-Position PCB Terminal Block, 3.50 mm Pitch, Push-In Spring Clamp

The TE Connectivity 1-2834011-3 is a 3-position, single-level PCB terminal block with a 0.138" (3.50 mm) pitch, designed for vertical wire entry relative to the board. It uses a screwless push-in spring termination — strip the wire and push it into the clamp; no screwdriver needed for the connection. Each position is rated 6 A at 300 V, and the block accepts wire from 14 AWG to 20 AWG.

The push-in spring termination accepts solid or ferruled stranded wire — the spring leg clamps the conductor without a screw. The 14-20 AWG range covers common power and signal wire sizes used in control panels and junction boxes. The through-hole kinked pin provides mechanical retention during soldering and resists pull-out from the PCB.

The copper alloy contacts are tin-plated — adequate for the rated current and environment, though not intended for high mating-cycle applications (the block is a permanent wire termination, not a repeatedly mated connector).

MPN
1-2834011-3
