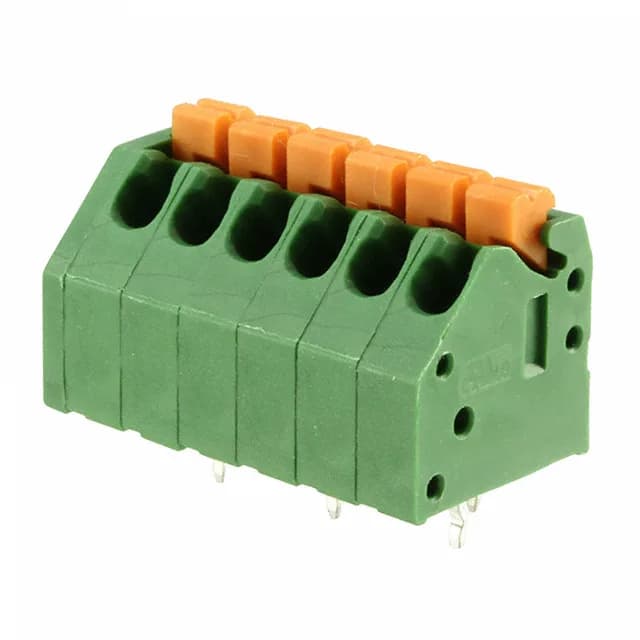

The TE Connectivity 1-2834011-6 is a 6-position PCB terminal block from the 2834011 series, designed for top-entry wire termination at a 3.50 mm pitch. It uses a screwless push-in spring clamp — leg-spring style — so you strip the wire and push it in; no screwdriver needed for solid conductors. The green housing is polyamide 6/6 (PA66), UL94 V-0 rated, and the contacts are copper alloy with tin plating — standard for this class of block.
Termination and wiring — push-in spring, no tool needed for solid
Wire termination is screwless — a leg spring clamps the conductor when you push it into the entry. Accepts 14-20 AWG stranded or solid wire. For solid wire, you just strip and push; for stranded, a small screwdriver depresses the spring release. The top-entry orientation means wires enter parallel to the board surface, vertical with the board. Through-hole mounting with a kinked pin locks the block in place during wave solder — no secondary hold-down needed.
The 3.50 mm pitch gives enough room between terminals for 14 AWG wire without crowding — useful when you're running multiple circuits on a dense board. 6 A per position is the working limit at the rated temperature; the tin-plated copper alloy contacts handle that current with a comfortable margin below the PA66 housing's thermal ceiling. ROHS3 compliance is confirmed.
