TE Connectivity AMP Connectors 1-2834017-4 — Wire-to-Board Headers

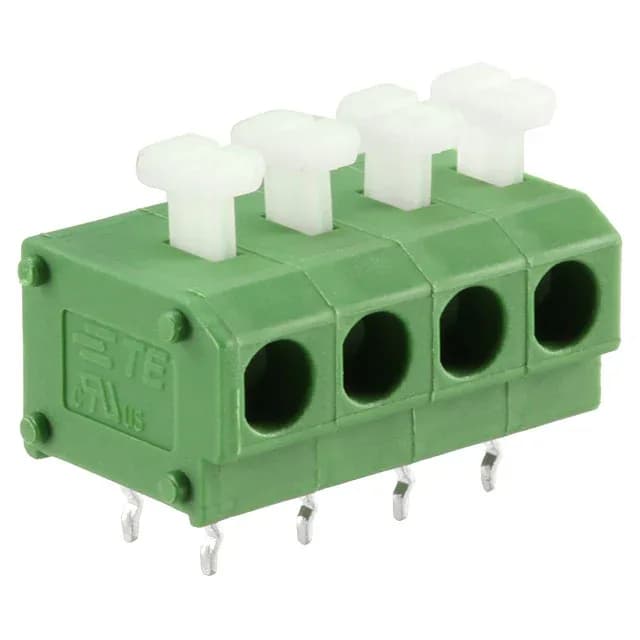

TE Connectivity 1-2834017-4 PCB Terminal Block, 4 Position

MPN1-2834017-4
Active

TE Connectivity, PCB terminal block, 1-2834017-4, 4 positions, 3.81mm pitch, 8 A, 300 V, through-hole, horizontal with board, screwless push-button clamp, 16-20 AWG, green PA66 housing.

$1.3100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-2834017-4 specifications
ParameterValue
MountingThrough Hole
Voltage300 V
Current8 A
Wire gauge16-20 AWG
Wire terminationScrewless - Push Button Clamp
Operating temperature-40°C ~ 105°C
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingSteel, Stainless
Contact material - platingCopper Alloy - Tin Plated
Pitch0.150\" (3.81mm)
PackageBulk
FeaturesInterlocking (Side)
Number of levels1
Mating orientationHorizontal with Board
Positions per level4

Product details

3.81mm Pitch, 4-Position PCB Terminal Block with Push-Button Clamp

The 1-2834017-4: The screwless push-button clamp terminates 16-20 AWG solid or stranded wire without tools — push the button, insert the stripped conductor, release. The green polyamide 6/6 housing carries a 300 V / 8 A rating per position, suited for control cabinet wiring, PLC I/O modules, and industrial sensor interfaces where the board edge meets the field wiring.

Interlocking Side Feature for Multi-Way Ganging

The housing includes an interlocking side feature, allowing multiple 1-2834017-4 blocks to be keyed together side-by-side into a continuous multi-position assembly on the PCB.

Frequently asked questions

What wire gauge does 1-2834017-4 accept?

The screwless push-button clamp accepts 16-20 AWG solid or stranded wire. The conductor is inserted directly without a ferrule — push the orange button, insert stripped wire to the full depth, release the button to clamp.
