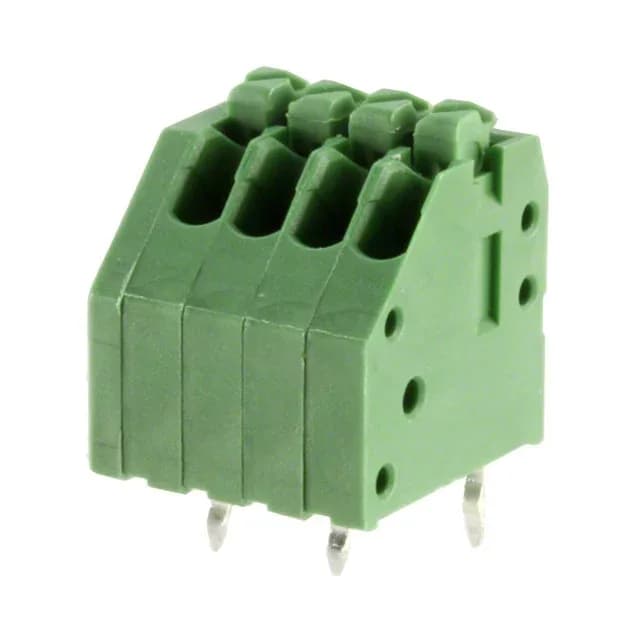

TE Connectivity, 1-2834021-4, PCB terminal block, 4 positions, 0.098" (2.50mm) pitch, 5 A, 300 V, through-hole kinked pin, screwless push-button clamp, green PA66 housing.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Kinked Pin |
| Voltage | 300 V |
| Current | 5 A |
| Wire gauge | 20-26 AWG |
| Wire termination | Screwless - Push Button Clamp |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Contact material - plating | Copper Alloy - Tin Plated |
| Pitch | 0.098\" (2.50mm) |
| Package | Bulk |
| Number of levels | 1 |
| Mating orientation | Vertical with Board |
| Positions per level | 4 |
The 1-2834021-4: It uses a screwless push-button clamp — strip the wire, push the button, insert, release. No screwdriver needed, which speeds up panel wiring and field changes.
The push-button clamp grips the conductor, and the kinked through-hole pins hold the block in place during wave solder. The 300 V rating gives enough creepage for control-voltage circuits inside an enclosure.
