10-position power tap for control cabinets

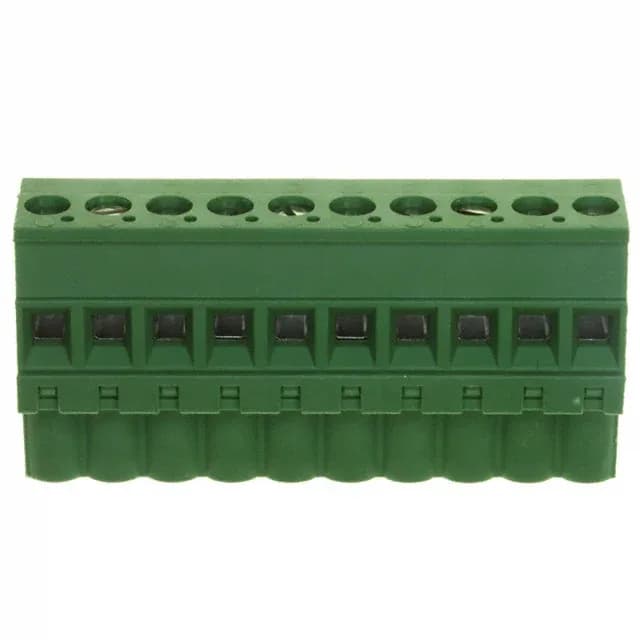

The 1-284041-0: This Buchanan plug carries 10 circuits at 15 A and 300 V per position — enough for a multi-drop power distribution inside a machine control panel or VFD cabinet. The 5.08 mm pitch keeps the terminal spacing wide enough for 12 AWG wire without crowding.
Rising cage clamp and wire range
Termination is a screw-driven rising cage clamp that accepts 12-30 AWG (0.05-3 mm²) solid or stranded wire. The M3 screw torque is 0.79 Nm (7.0 Lb-In) — enough to pull the cage up against the conductor without stripping the nylon threads. Strip length is 6-7.5 mm; the phosphor bronze contact with tin mating finish handles repeated terminations in a maintenance cycle.
