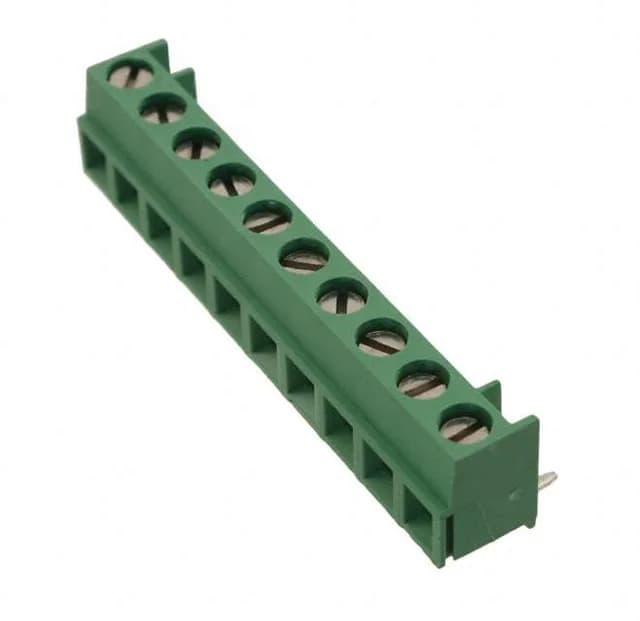

10-Position PCB Terminal Block at 5.00 mm Pitch
It uses a rising cage clamp — screw-driven — to terminate 16-30 AWG wire against a tin-plated brass contact, with the screw torque set at 0.68 Nm (6 Lb-In).
13.5 A at 300 V — Power-Distribution Duty
Rated 13.5 A per position at 300 V, this block is sized for on-board power distribution — feeding a control board's DC rail or AC line voltage to a relay bank. The single-level layout keeps the wiring accessible from the top, vertical to the board.
Rising Cage Clamp — Field Wiring, No Crimp Tool
The rising cage clamp termination accepts solid or stranded wire from 16 AWG down to 30 AWG. The M3 screw is brass with nickel plating, the clamp is brass with nickel plating, and the contact is brass with tin plating — a combination that resists corrosion in the typical industrial cabinet environment. The interlocking side feature allows multiple blocks to be ganged together on a DIN rail or panel without gaps.
