TE Connectivity AMP Connectors Buchanan series, 1-284093-1, 11-position, 0.197" (5.00mm) pitch, wire-to-board header, green, rising cage clamp termination, 13.5 A, 300 V, through-hole, bulk
| Parameter | Value |
|---|---|
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 13.5 A |
| Wire gauge | 16-30 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Brass - Nickel Plated |
| Screw material - plating | Brass - Nickel Plated |
| Contact material - plating | Brass - Tin Plated |
| Pitch | 0.197\" (5.00mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M3 |
| Torque - screw | 0.68 Nm (6 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Vertical with Board |
| Positions per level | 11 |

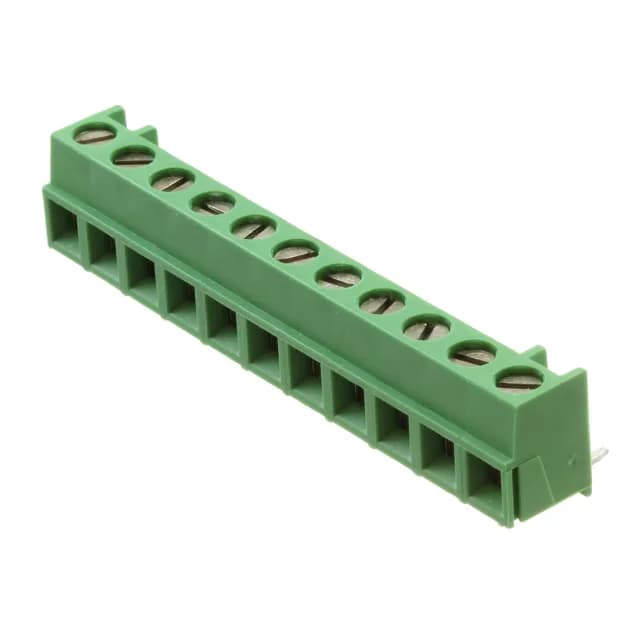

The 1-284093-1: The green polyamide housing (PA66) is keyed for vertical wire entry with the board. Rated 13.5 A at 300 V, it carries the power side of a wire-to-board interconnect. The rising cage clamp accepts 16-30 AWG wire and the M3 screw torques to 0.68 Nm (6 Lb-In) — the clamp material is brass with nickel plating, the contact is brass with tin plating.
Yes, the 1-284093-1 is ROHS3 compliant.
The rising cage clamp accepts 16-30 AWG wire.
